Dso Fnirsi Pro Handheld Digital Oscilloscope Mini Portable High Definition Lcd Screen

Product code: FQZEC_G0V5A1LT

$56.63 $68.97

SOLD OUT
Quantity:
Dso Fnirsi Pro Handheld Digital  Oscilloscope Mini Portable HD Lcd Screen
Ship to: $0.43 to United States via YUNTU--Special Priority Line Registration 
Supplier:Leonard Veblen
Rank:4.3
Buy More... Get Lower PricesYes! We Ship To  us

Payment Guarantee:smile
Shipping Support:smile
Share To:
.
Dso Fnirsi Pro Handheld Digital  Oscilloscope Mini Portable HD Lcd Screen
Dso Fnirsi Pro Handheld Digital Oscilloscope Mini Portable HD Lcd Screen
$56.63
.
  • --it has a real-time sampling rate of up to 20MS/s and a 5MHz analog bandwidth.
  • --Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time.
  • --Day mode and night mode can be changed according to their own preferences.
  • --Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions.
  • --Display the High Definition LCD screen equipped with 2.4 inch 320 x 240 resolution.
.

Description:
Name:  Digital Oscilloscope
1: Analog band width: 5MHz
2: Maximum real time sampling rate: 20MS/s
3: Vertical sensitivity: 50 mV/div ~ 200 V/div
4: Horizontal time base range: 50S/div ~ 250nS/div
5: Maximum input voltage: 40 V (1X probe), 800 V (10X probe)
6: Storage depth: 40KB
7: Input resistance: 1M
8: ADC precision: 8bits
9: Coupling mode: AC/DC
10: Trigger mode: Single, Normal, Automatic
11: Trigger edge: Ascending/descending edge
12: External trigger voltage 0 – 40 V
13: Display: 2.4 inch @ 320x 240
14: Power supply: 1200mAh lithium battery
Key features:
1: Memory compression technology, waveform refresh screen does not flicker
2: Afterglow display technology
3: 2.4 inch color display screen
4: 5MHz analog bandwidth @ 20MS/s sampling rate
5: Fast waveform storage
6: Built-in 16M storage space, the maximum storage of 500 waveform pictures
7: Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions
8: High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V
9: Up to 11 parameters measurement: VPP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Time
10: At any time, the waveform display (pause function) is frozen
11: Equipped with high efficiency one button AUTO
12: Complete triggering function (single, normal, automatic)
13: Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time
14: Day mode and night mode
15: Ultra small volume, easy to carry
16. DSO FNIRSI PRO is a full function, high utility, high performance and cost-effective handheld oscilloscope for the maintenance industry and the R & D industry.
17. With complete triggering function (single, normal, automatic), both the periodic analog signal and the aperiodic digital signal can be used freely. Large time base scanning mode can monitor slow level changes.
18. Equipped with high efficiency one button AUTO, the measured waveform can be displayed without complicated adjustment. Extremely convenient and fast waveform storage function, built-in 16MB storage space, the maximum storage of 500 waveform pictures.

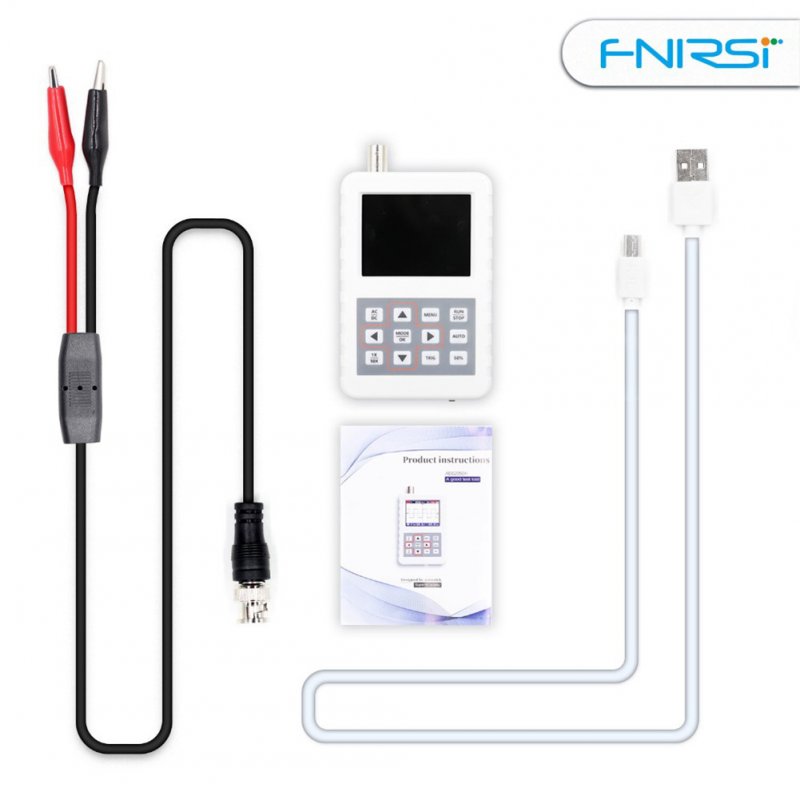

Packing list:
1 x DSO FNIRSI PRO oscilloscope host
1 x Crocodile clip probe
1 x Micro USB data line
1 x User manual (English)
Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
Manual measuring,please allow 1~3mm error,thank you.

.
