Holybro Kakute F7 Flight Controller+Atlatl HV V2 FPV Transmitter+Tekko32 35A 4 In 1 ESC for RC Drone KSX3195

Product code: PTO_056UK801

$127.53 $152.15

SOLD OUT
Quantity:
Holybro Kakute F7 Flight Controller+Atlatl HV V2 FPV Transmitter+Tekko32 35A 4 In 1 ESC for RC Drone  KSX3195
Ship to: FREE SHIPPING to United States via YUNTU--Special Priority Line Registration 
Supplier:Canva
Rank:4.9
Buy More... Get Lower PricesYes! We Ship To  us

Payment Guarantee:smile
Shipping Support:smile
Share To:
.
Holybro Kakute F7 Flight Controller+Atlatl HV V2 FPV Transmitter+Tekko32 35A 4 In 1 ESC for RC Drone  KSX3195
Holybro Kakute F7 Flight Controller+Atlatl HV V2 FPV Transmitter+Tekko32 35A 4 In 1 ESC for RC Drone KSX3195
$127.53
.

Kakute F7 Flight Controller:

--High-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axis gyro and accelerometer. Can run at up to 32 kHz sampling rate.

--Betaflight OSD. Change PIDs, adjust common configuration parameters.

Atlatl HV V2:

--Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.

Tekko32 35A 4 In 1 ESC:

--4in1 ESC with 30.5x30.5mm mounting holes, supports DSHOT 1200, BLHELI32 firmware.

.

Description:

Item name:Kakute F7 Flight Controller+Atlatl HV V2 FPV Transmitter+Tekko32 35A 4 In 1 ESC

Kakute F7:

Brand name: Holybro

MCU: STM32F745 32-bit processor

IMU: ICM20689 (SPI)

Barometer: BMP280

USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) 6 hardware UARTS (UART1,2,3,4,6,7)

All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvert hack

Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.

TF card for Blackbox logging

Dimensions: 35x41x7mm (includes foam-mounted gyro board in height)

Mounting Holes: Standard 30.5mm square to center of holes

Weight: 9g

Atlatl HV V2:

Item Name: 5.8G 40CH 25/200/500/800mW FPV Transmitter

Model: Atlatl HV V2

Transmitting Output Power: 25mW/ 200mW/ 500mW/ 800mW Switchable

Audio:  6 MHz + 6.5 MHz Mono

Antenna Connector: MMCX

Input Voltage: 7-28V (2-6S Lipo)

Dimension: 35(L)x 25(W)x 7(H)mm

Mounting Hole: 30.5x30.5mm

Weight: 9.3g



Tekko32 35A 4 In 1 ESC:

Supports 3-6S lipo input

35A continuous current, 50A burst

Mounting holes 30.5x30.5mm

Size: 55*40*6.4mm

Weight: 17g

List of packages:

1x Tekko32 4in1 ESC

1x 8pin to 8pin 1mm pitch cable

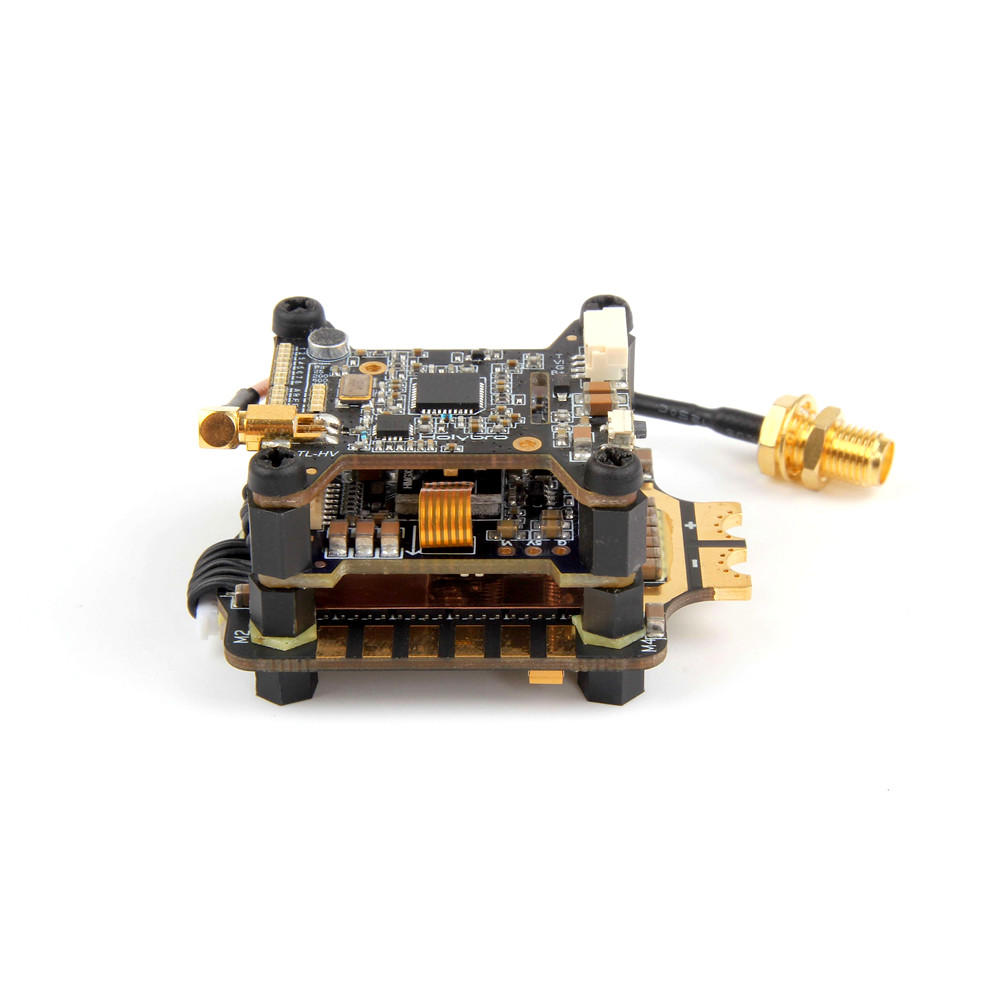

1x Kakute f7 +Atlatl V2 stack

1x Heat sink

1x 80mm SMA--MMCX Cable

1x 150mm 4pin JST GH wire

Note:

2. The colors may have different as the difference display, please understand.

.
