Feature:
--The simulation structure design is adopted, which has the control feeling of a real car, and realizes full-scale continuously variable speed change, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, right turn;
--7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C;
--New remote control panel function: rudder size adjustment;
--The whole car adopts 16 ball bearings;
--Metal second floor, metal front and rear arm yards, metal middle drive shaft;
--The car shell adopts high toughness explosion-proof PVC car shell;
--Three-wire 17G digital servo;
--Applicable site: flat, sand, mud, grass.
--Simulation off-road tires, strong grip;
Description:

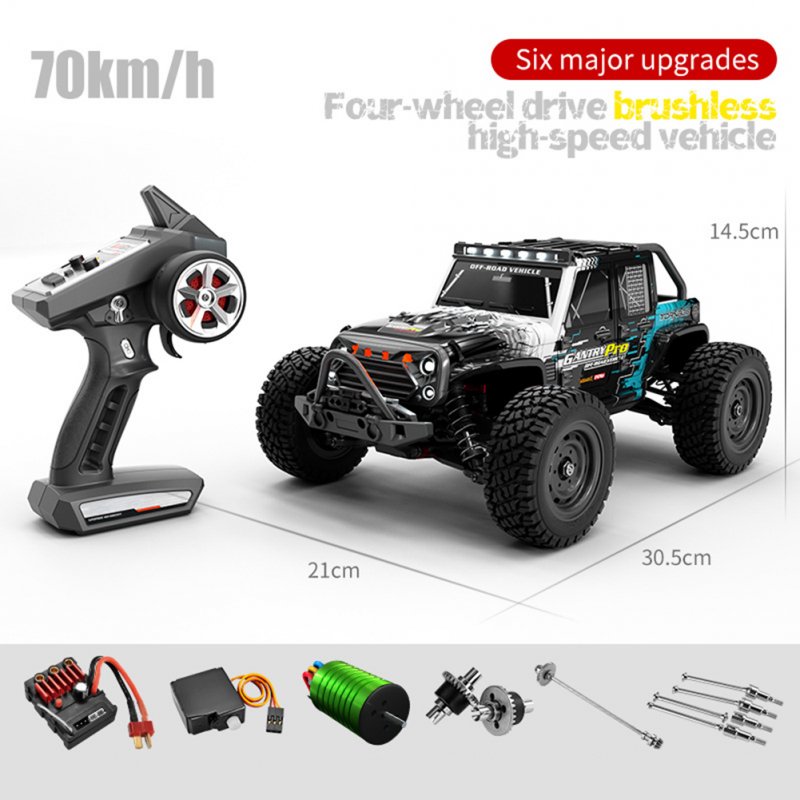

Name: Remote control Car
Model: Q117
Product configuration: 1/16 electric four-wheel drive truck
Product material: hardware; electronics; plastic
Product size: 30.5 x 20.5 x 13.8 CM
Color box size (cm): 32 x 17.5 x 23 CM
Packing: English portable color box
Color: red, blue
Body battery: 7.4V 1500mAH 15C lithium ion battery (T plug) Remote control battery: 3 x AA (not included)
Charging time: 3-3.5 hours (USB balanced charge)
Remote control distance (meters): ≥120 meters
Remote control category: full scale synchronous control system (gun-control)
Brushless motor: 2840 brushless motor (4000 KV value)
Servo: Three-wire 17G digital servo
ESC/Receiver: 35A ESC/Receiver integrated control (splash-proof)
Speed: 70 km/h (top speed)
Wheelbase parameters: wheelbase: 185mm; wheelbase: 188mm; wheel diameter: 85mm;
Differential structure: planetary gear differential
Protection function: 1. Charging; 2. Stuck; 3. High temperature; 4. Low voltage
-Charging protection: constant current and constant voltage balance charging, protection function for battery overcharge and overcurrent.
-Motor anti-jamming protection: when overloaded, the motor stops working.
-High temperature protection: When the working temperature is higher than the set condition, the drive control circuit stops working, and resumes work when the temperature drops to a safe value.
-ESC low-voltage power-off function, when the battery is lower than about 6.3-6.4V, it will automatically power off to prevent the battery from being damaged by over-discharge.
Packing list:
1 x Remote control car
1 x remote control
1 x Manual in Chinese and English
1 x lithium battery
1 x USB balanced charge
1 x DIY sticker for double side doors
1 x shock absorption adjustment snap ring
1 x metal latch
1 x hexagon socket
1 x Brushless guide inserts
Note:
Due to manual measurement, please allow 1-3 cm error, thank you.
Due to screen and other objective reasons, there may be a certain color difference, please understand.
.
