• It is a learning code wireless remote control switch (receiver), the output way /working way can be changed as you like, it is easy to match the transmitter.
• It has 4 Relays which can make the equipment turn or reverse, on/off and so on come true. The volume is small and the performance is stable and reliable, high receive sensitivity.
• Suitable for auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security etc.

Description:

Item type:Remote Control

These remote controls are designed to control a wide variety of electronic devices with a wireless signal.

Extremely easy to set up and use. 4. Compatible with 2262 / 2260 / 1527 / 2240 etc chip and several code wireless remote control. So it can meet someone's need of choosing the wireless remote control as they like to work with it .

Press the learning code, the indicator flash, loosen your finger, press any button of the remote control, the indicator flash 2 times and off, it means you learn it successfully .

It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control. remove/clean: press the learning button about 8 seconds , the indicator turn on to off, it means the information that you keep have been removed successfully.

Output working way:

1. Self-lock: connect the JP1 with the cutting out cap.

2. Jog: the cutting-out cap is non-occupation, JP1 and JP2 do not connect either.

3. Inter-lock: Connect the Jp2 with the Cutting out cap,

Jog: press one button is ON, loosen your finger on the same button is OFF (need one channel switch and one buttons remote control).

Self -lock: press one button for one time is ON, press the same button again is OFF (need one channel switch and one buttons remote control).

Inter-lock: press one button is ON, press another button is OFF (need one channel switch and 2 buttons remote control).

Receiver:

1. Working voltage: DC12V

2. Quiescent condition: Less than 6mA

3. Working temperature: -40~+80 Celsius

4. Receiver sensitivity: more than -105dBm

5. Working frequency: 433mhz

6. Output voltage: DC and AC is optional

7. Output current: Less than 3A

8. Max load current: 10A

9. Dimensions: 72 x 52 x 26mm

10. The wires on the PCB are random (Black or White) by sent

Remote control transmitter:

1. Remote Distance: 200M

2. Operating Voltage: DC 12V

3. Frequency: 433mhz

4. Operating Current: 13 mAh

5. Code Type: Fixed code / Learning code

6. Dimensions: 58 x 39 x 14mm

7. Used battery type: 2016 button battery

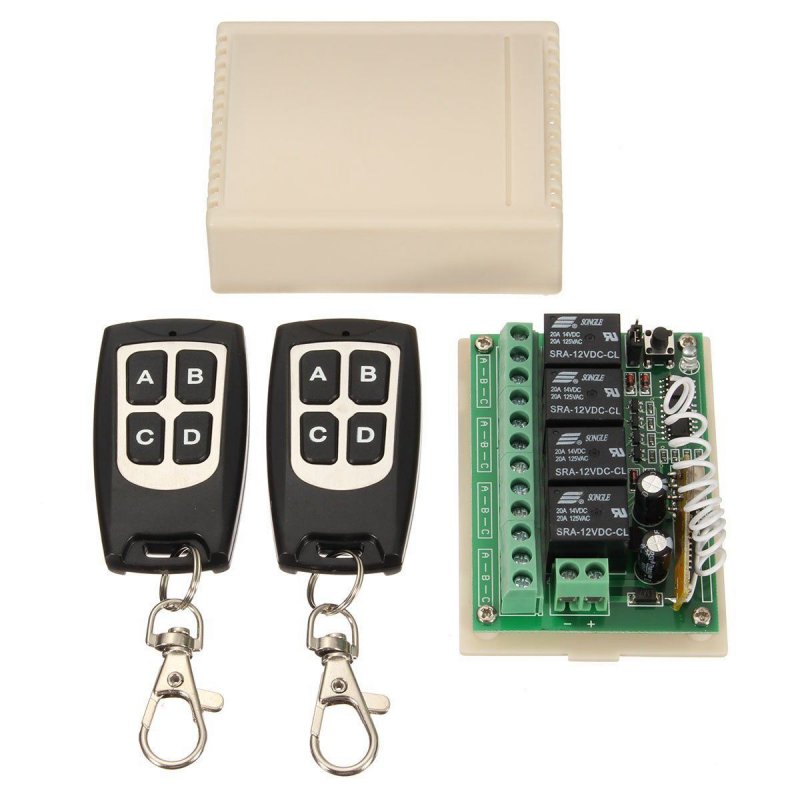

Package Include:

2X Transmitter

1X Receiver
