Description:

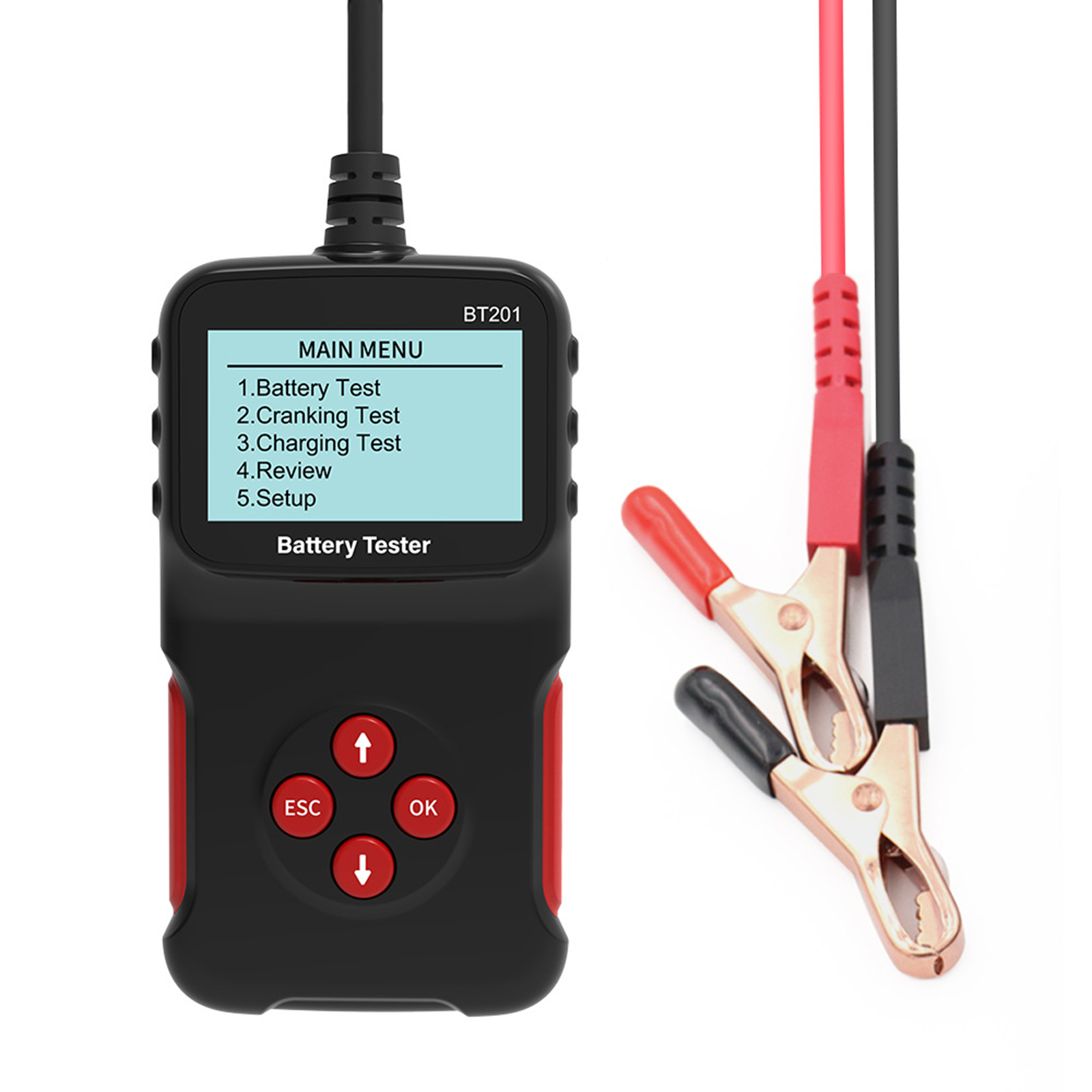

Name: Automobile Battery Diagnostic Instrument
Color: black red
Material: ABS
Model: BT201
Function:
1. Test voltage, internal resistance, cold start current
2. Battery capacity, battery health and state of charge
3. Calculate the cold start ability and aging degree of the battery
Detection capacity: 100-2000CCA
appropriate types:
1. Flooded battery
2. AGM tablet
3. AGM spiral
4.GEL battery
Working temperature: -20-60°C
Storage temperature: -20-70C
External power supply: 12V
Supported languages: English, German, French, Portuguese, Italian, Russian
supporting agreement:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Packing list:
1 x Automobile Battery Diagnostic Instrument
1 x Manual
Note:
1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
.
