Feature:
1. The product has a red LED indication light design, which corresponds to each electrical appliance connected to the fuse. When the fuse is disconnected, the red light will be on, and you can immediately know which fuse is broken, which is convenient for timely processing.
2. The product comes with a sticker, which can be attached to the electrical appliance we connected according to the name on the sticker. When the fuse is broken and the red light is on, we can immediately tell which electrical appliance has a problem, saving Save time and effort.
3. The product is delivered with double fuses. When it is used, the fuse is burned out and can be replaced immediately from the spare fuse, and the fuse is sent with multiple amperes, and the fuse for the ampere can be selected according to the current electrical appliance.
4. The electrical circuit and the switch circuit are separate, and a relay is added to control a large current with a small current. For the switch, a small current can be used to control a large current electrical appliance.
5. The concept of ACC control fuse box is adopted for the first time. Turn off the car key without current, cut off the power directly, prevent power loss, and be smarter.
Description:

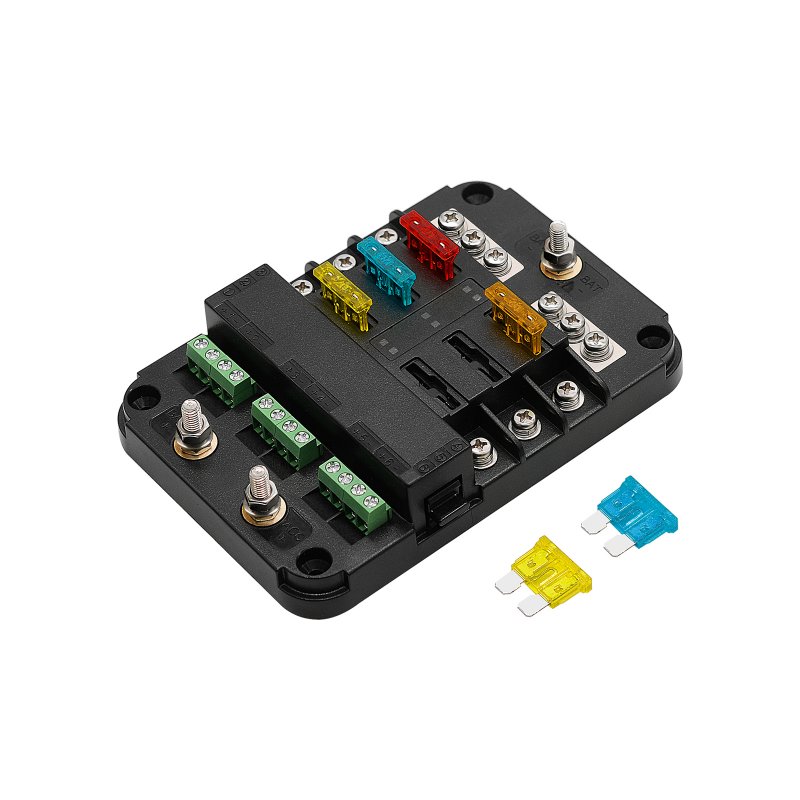

Name: 6-way Individually Controlled Open Circuit Indication Fuse Box
Model: CS-1858A1
Net weight: 272g
Gross weight: 304g
Size: 13 x 9 x 3.5cm
Material: ABS body, PC waterproof and dustproof cover, nickel-plated copper connection terminal, PPX40 sticker
Input rated voltage: 10V-24V
Input rated current: 80A
Single channel maximum output current: 20A
Indication color: blue, red
Main line terminal: M5 threaded stud
Main wire: #4-6
Single wire terminal: M4 threaded stud
Single Wire: #12-16
Indication light function: When the blue light LED light is on, it means that the line is powered on and is running normally. When the red LED light is on, it means that the fuse has been disconnected, and the fuse needs to be replaced in time to continue to operate
Installation range: It can be installed on cars, villas, RVs, buses, yachts, boats, etc.
Scope of use: It can be directly connected to any electrical circuit on the car/boat (such as: roof lights, car headlights, wide-view lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs wait)
Packing list:
1 x fuse box
4 x 20A fuse
4 x 15A fuse
2 x 10A fuse
2 x 5A fuse
2 x stickers
4 x tapping screws
Note:
1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
.
