Description:

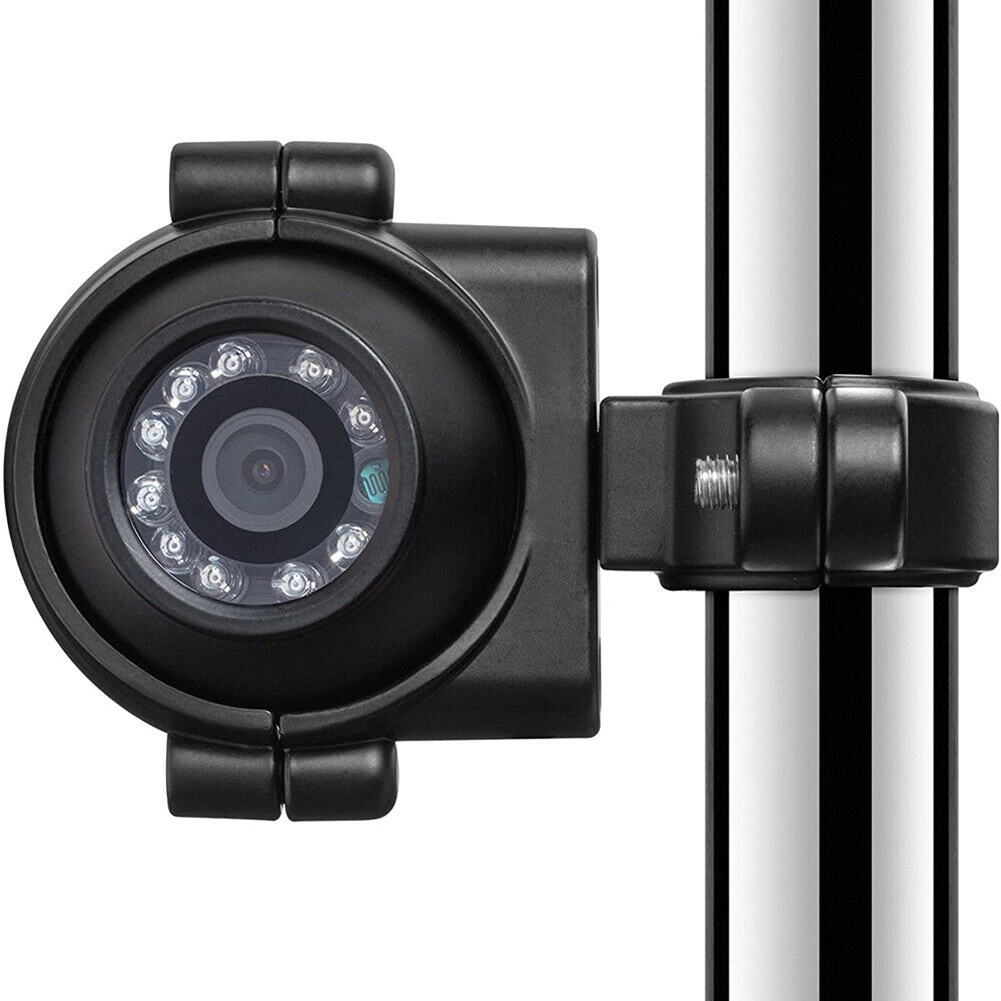

Product Name: Camera
Number of pixels: NTSC: 512(H) x 492(V); PAL: 512(H) x 582(V)
Horizontal resolution: 420 TV lines
Automatic Gain Control: Automatic
Available Lighting: 0LUX with 18 IR LEDs
Infrared projection distance: 15M
Connector: 10mm 4Pin
Video output: 1.0Vp-p 75Ω, negative
Electronic Shutter Time: Auto: NTSC 1/60-1/100,000Sec, PAL 1/50-1/100,000Sec
Gamma characteristic: 0.45
Lens focal length: 2.8mm
White Balance: Auto
Scanning system: NTSC 525 lines, 60 fields/sec, PAL 625 lines, 50 fields/sec
Synchronization system: Internal synchronization
Power supply: DC12V-DC24V, 250mA
Size: as shown
Working temperature: -10℃- +50℃ RH 95% Max
Storage temperature: -20℃- +60℃ RH 95% Max
Waterproof: IP68
Packing list:
1 x Camera
Note:
1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
.
