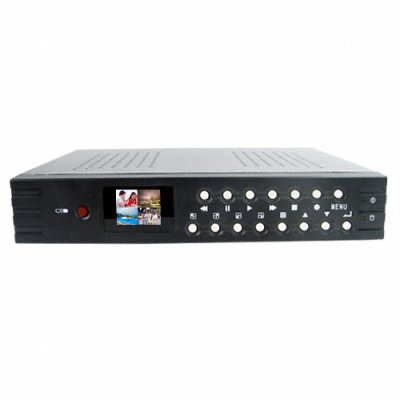

Four Channel Embedded Digital Video Recorder -NTSC

4 Channel DVR

Average Customer Rating: 5 star rating  based on 1 reviewsprice range: 118.83 - 108.85

Product code: CVAJM-913-NTSC


4 Channel DVR
Left
Browse Chinavasion com for DVR Cards  DVR Systems  DVR Surveillance  CCTV DVR PlayersBrowse Chinavasion com for DVR Cards  DVR Systems  DVR Surveillance  CCTV DVR PlayersBrowse Chinavasion com for DVR Cards  DVR Systems  DVR Surveillance  CCTV DVR PlayersBrowse Chinavasion com for DVR Cards  DVR Systems  DVR Surveillance  CCTV DVR PlayersBrowse Chinavasion com for DVR Cards  DVR Systems  DVR Surveillance  CCTV DVR PlayersBrowse Chinavasion com for DVR Cards  DVR Systems  DVR Surveillance  CCTV DVR PlayersBrowse Chinavasion com for DVR Cards  DVR Systems  DVR Surveillance  CCTV DVR PlayersBrowse Chinavasion com for DVR Cards  DVR Systems  DVR Surveillance  CCTV DVR Players
Right


.
4 Channel DVR
4 Channel DVR
$118.83
Avg Customer Rating:5 star rating
.
If you're after the highest standards in DVR equipment to look after assets or family then here it is, an excellent 4 channel DVR with Preview LCD, internal HDD capability and USB connectivity. You'll be impressed from the get-go after you simply install your own 3.5 inch HDD (up to 200GB), and easily connect your cameras. From here this unit switches into top gear, with dual monitor outputs, an s-video output (ideal for a TV), sensor inputs and an alarm output. Recording is possible on all channels simultaneously and in a number of different profiles so you can go all out for quality or step the resolution and frame rate down a bit for maximum recording times. All these features packed into a small, actively cooled (50mm fan) rugged steel enclosure.

A powerful and but discreet product and an all-time great seller get yours today from Chinavasion at great wholesale prices with no MOQ.

Note: This unit does not come with a hard disk drive you will need to purchase this separately.

.

Manufacturer Specifications

  • 1.5 Inch TFT LCD Screen
  • Recording Format: MPEG -AVI
  • Recording Quality: Low, Normal, High
  • Default Frame Rate Settings: NTSC: 30 Frames per Second
  • Recording Frame Rates: Frames per Second - 30, 15, 10, 7, 5, 4, 3, 2, 1
  • Inputs:
    - 4 Channel BNC (RCA with Small Adaptors) Video Camera Input
    - 4 Motion Sensor/ Trigger Inputs
  • Outputs:
    - 4 Channel Camera Loop Back
    - 1 Alarm Output
    - 2 BNC (RCA with Small Adapters) Monitor Outputs
    - S-Video Output
    - USB Output for PC link
  • Power Source: 12 V DC
  • Dimensions: 290mm x 220mm x 52mm (L x W x H)
  • Manufacturer Ref: GYW468E5P2Q9

Product Notes

  • Local PC monitoring and backup via USB- no need to take out the hard disk
  • Password Protection- video captures will be safe from accidental erasure/ tampering
  • Tough Stackable Casing
  • Internal Alarm When Video Signal Lost
  • Power Failure Protection, Automatic Restart
  • Stand-Alone Operation not effected by PC Viruses etc.

Package Contents

  • Model CVAJM-913-NTSC Four-channel DVR
  • Manual
  • Power Adapter
  • 3 X RCA cables (2 male connectors at each end)
  • Software CD
  • 1 X IDE to SATA adapter
  • 10 X BNC to RCA (female) Adapters
.

Reviews for: (Four Channel Embedded Digital Video Recorder -NTSC)

Deliverystarrs 5starrs 5starrs 5starrs 5starrs 5
Value for Moneystarrs 5starrs 5starrs 5starrs 5starrs 5
Packagingstarrs 5starrs 5starrs 5starrs 5starrs 5
Ease of Setup/Usestarrs 5starrs 5starrs 5starrs 5starrs 5
Function/Performancestarrs 5starrs 5starrs 5starrs 5starrs 5
Average Rating: 5 star rating 5 star rating 5 star rating 5 star rating 5 star rating  1 customer reviews





Write Review
by
on
5 star ratinga great buy

i like the in screen video action it great


Date Launched: Jun 18 2008
