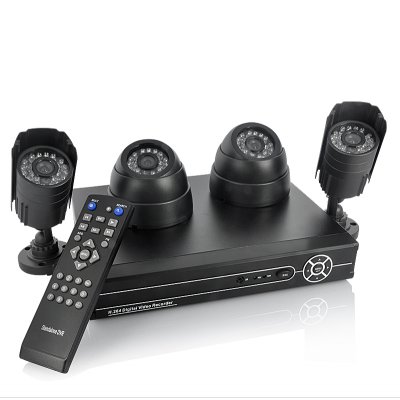

Complete DVR Surveillance System - 4x 600TVL Cameras, H.264

Complete DVR Surveillance System

Average Customer Rating: 5 star rating  based on 7 reviewsprice range: 115.86 - 107.81

Product code: CVJD-I235


Complete DVR Surveillance System
Complete DVR Surveillance System
WATCH 360° >>>
BACK TO IMAGES >>>
Left
Complete DVR Surveillance System that features 4 cameras so you can watch what is happening outside as well as insideComplete DVR Surveillance System that features 4 cameras so you can watch what is happening outside as well as insideComplete DVR Surveillance System that features 4 cameras so you can watch what is happening outside as well as insideComplete DVR Surveillance System that features 4 cameras so you can watch what is happening outside as well as insideComplete DVR Surveillance System that features 4 cameras so you can watch what is happening outside as well as insideComplete DVR Surveillance System that features 4 cameras so you can watch what is happening outside as well as insideComplete DVR Surveillance System that features 4 cameras so you can watch what is happening outside as well as insideComplete DVR Surveillance System that features 4 cameras so you can watch what is happening outside as well as insideComplete DVR Surveillance System that features 4 cameras so you can watch what is happening outside as well as insideComplete DVR Surveillance System that features 4 cameras so you can watch what is happening outside as well as insideComplete DVR Surveillance System that features 4 cameras so you can watch what is happening outside as well as inside
Right


.
Complete DVR Surveillance System
31%
OFF
Complete DVR Surveillance System
$99.99  $115.86
Avg Customer Rating:5 star rating

See alternatives:

.
Complete DVR Surveillance System that features 4 cameras is more convenient than ever, therefore you can keep an eye on everything inside, outside, and around your home or business.

This incredible and extremely versatile DVR is your professional and high performance audio and video solution for surveillance. Use this DVR at home, stores, internet bars, small offices, and any other place you are worried about. You can connect the DVR to your monitor and watch the surveillance video therefore you can choose any camera or have 4 of them on screen simultaneously or program the unit to record with motion detection. It even comes with a full featured remote control. With H.264 video compression, the video records at a lower bit rate but with higher quality, which just means better video and less storage required. H.264 is a standard for video compression, and is currently one of the most commonly used formats for the recording, compression, and distribution of high definition video.

This Complete DVR Surveillance System comes with 4 cameras, giving you the convenience and versatility you need from a true security system. The indoor cameras are compact and portable enough to be installed in any crevice of the room, while the outdoor cameras are weatherproof, highly durable, and designed to stand up against both blunt force and force of nature. All of the cameras also include IR night vision LED lights, which automatically activate at night so you're protected 24/7. The cameras that come with this security package have a horizontal resolution of 600 TVL, which means the picture is created by electron beam scanning from the upper left and moving horizontally to the right and moving down until it reaches the lower right of the screen. 600 TV lines mean that it takes 600 scans to get the job done and this is repeated to produce a clear image.

Easy to set up, easy to use, and easy on the wallet, this DVR security system is one of our best deals and security solutions yet. This product is in stock and can be dispatched within 24 hours of ordering with a 12 month warranty. Brought to you by the leaders in wholesale electronics and security DVRs, Chinavasion.

At a Glance...
  • H.264 Video Compression
  • 4x Cameras
  • Self-Recovery System
  • Motion Alarm and Video Loss Alarm
  • Multiple Recording Mode
  • Mobile Phone Support
.
Manufacturer Specifications

    DVR
    • Video System: PAL/NTSC
    • Resolution: PAL: 352x288 (CIF), 704x576 (D1) / NTSC: 352x240 (CIF), 704x480 D1)
    • FPS: PAL: 25fps (D1), 100fps (CIF) / NTSC: 30fps (D1), 120fps (CIF)
    • Image Compression: H.264
    • Audio Compression: 8kHz x 16 Bit ADPCM
    • Operation System: Linux
    • Recording Pack Time: 15/30/45/60 Minutes Selectable
    • Record Mode: Always / Schedule / Motion Detection / Sensor Triggered
    • Playback Mode: Normal Play, Fast Forward, Fast Rewind, Frame by Frame
    • Record Save: USB Flash Disk, USB Disk, USB CD/DVD-RW & Network
    • Operation Temperature: -10 to 40 Degree Celsius
    • Power Source: Power Adapter
    • Power Consumption: 10 to 15W

    DVR Connectivity
    • Ethernet: RJ-45 Interface 10/100Mbps
    • Supported Protocol: TCP/IP, UDP, DHCP, DNNS, PPPoE
    • Mobile Phone Browser: Symbian, Windows Mobile, iPhone, Blackberry, Android
    • Internet Browser: Internet Explorer

    DVR Minimum System Requirements:
    • Browser: Internet Explorer 6.0 and above

    Camera
    • Video System: PAL/NTSC
    • Resolution: 600TVL PAL -500(H) x 582(V), CCIR:752(H) x 582(v), EIA:768(H) x 494(V)
    • Weatherproof Rating: IP66 (Outdoor Cameras Only)
    • Back Light Compensation
    • CDS Automatic Control
    • S/N Ratio: More than 48dB (AGC OFF)
    • Synchronization: Internal Sync
    • Gamma Correction: 0.45
    • Video Output: 1 Vp-p at 75O
    • Operating Temperature: -10 to 80 Degrees Celsius
    • Power Source: Power Adapter
    • Power Consumption: Less than 3W

    Camera Lens
    • Image Sensor: 1/3 Inch Color CMOS Sensor
    • Lens: f: 6mm
    • Electronic Shutter: 1/50 (1/60) to 100,000 Seconds
    • Viewing Angle: 60 Degrees

    Camera Night Vision
    • Infrared Light: Night Visibility up to 10 Meters
    • F = 2.0 (IR Lens)
    • Min LUX: 0.2

    Memory
    • SATA Hard Disk Drive Slot up to 2TB (Not Included)

    DVR Ports
    • SATA Hard Disk Drive Slots
    • RS485 PTZ Control
    • 4CH BNC Video IN
    • HDMI
    • VGA
    • 4RCA Audio IN
    • RCA Audio OUT
    • DC 12V
    • LAN
    • 2 x USB

    Camera Connection
    • BNC

    Dimensions
    • Main product dimensions: 260x209x42mm (L x W x D)
    • Main product weight: 885g
    • Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

    Package Contents
    • DVR
    • 4x Cameras
    • 5 to 1 Power Splitter
    • Remote Control
    • Screws and Mounts
    • Power and BNC Cable
    • Power Adapter
    • Mouse
    • 2x User Manual
    • Screws
    • CD

    Ordering from Chinavasion provides you with the following benefits:
    • Orders processed and shipped within 24-hours
    • 12 month warranty
    • In-house QC
    • Member discounts
    • Award winning customer support
    • Quantity order discounts
    • Worldwide Shipping
    • Certification: CE, FCC, RoHS
