4 Channel DVR System - H264 DVR, 7 Inch Screen, 2x SATA HDD

4-CH DVR Security Set with 7 Inch Screen

Average Customer Rating: 5 star rating  based on 5 reviewsprice range: 130.59 - 119.62

Product code: CVKT-E184

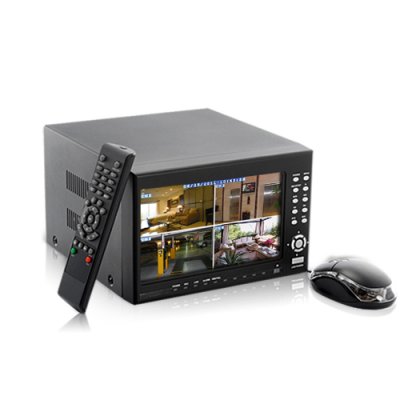

4-CH DVR Security Set with 7 Inch Screen
4-CH DVR Security Set with 7 Inch Screen
WATCH 360° >>>
BACK TO IMAGES >>>
Left
4 Channel Standalone Security DVR with a built in 7 Inch screen and tons of great features  ideal for your security issues4 Channel Standalone Security DVR with a built in 7 Inch screen and tons of great features  ideal for your security issues4 Channel Standalone Security DVR with a built in 7 Inch screen and tons of great features  ideal for your security issues4 Channel Standalone Security DVR with a built in 7 Inch screen and tons of great features  ideal for your security issues4 Channel Standalone Security DVR with a built in 7 Inch screen and tons of great features  ideal for your security issues4 Channel Standalone Security DVR with a built in 7 Inch screen and tons of great features  ideal for your security issues4 Channel Standalone Security DVR with a built in 7 Inch screen and tons of great features  ideal for your security issues4 Channel Standalone Security DVR with a built in 7 Inch screen and tons of great features  ideal for your security issues4 Channel Standalone Security DVR with a built in 7 Inch screen and tons of great features  ideal for your security issues4 Channel Standalone Security DVR with a built in 7 Inch screen and tons of great features  ideal for your security issues4 Channel Standalone Security DVR with a built in 7 Inch screen and tons of great features  ideal for your security issues
Right


.
4-CH DVR Security Set with 7 Inch Screen
4-CH DVR Security Set with 7 Inch Screen
$114.64
Avg Customer Rating:5 star rating
.
A great 4 Channel Standalone Security DVR with a built in 7 Inch screen; with tons of great features and functions, ideal for your security issues.

This awesome DVR with a 7 Inch LCD screen set comes with high quality H.264 video compression. H.264 compression records at a lower bit rate for high quality playback, longer recording with less storage required. This quality made DVR comes with a built in 16 bit true color 7 Inch Screen, so there’s no need to buy 2 devices when you can get both functions in this awesome combination security device. You can even install a HDD into the casing and connect it up to record video to, and the security system will indicate the HDD's capacity for recording.

Ideal for small business, office, factory or even your executive home, this multi functional DVR lets you have up to 4 security cameras (PAL or NTSC) setup around your premises, and comfortably take control of them from your office. It has a Multi-task processor for simultaneous recording, network surveillance, and even mobile phone live view via 3G/WiFi.

This professional standalone DVR comes includes a file system to avoid pesky disk fragments among subsection recording, protect super secret private data with extremely wild security; and it supports up to 2TB SATA HDDs (not included). Whilst this device is very compact and packed full of features it also consumes very little power and can help you with high speed backup and is multi-OS compatible. With support for DHCP and PPPOE, it is possible to connect the DVR Security System to your LAN or even the Internet.

Buy this high quality standalone 4 channel security DVR today. A great wholesale price makes this 4 Channel DVR Security System perfect for the resale market, OEM market, or personal/company use. This awesome piece of technology is brought to you buy your source for high tech electronic goods, Chinavasion.

At a Glance...

  • 4-Channel Simultaneous Recording/Viewing
  • User-friendly interface: 16 bit true color, semi-transparent graphical user interface with instruction hints
  • Easy to control with USB mouse
  • Suitable for supermarkets, chain stores, community security or mansions
  • Super compact design, low power consumption
  • Hi-speed backup/upgrade/record via USB2.0 - Install HDD into Casing for Recording
.
Manufacturer Specifications

    General
    • 7 Inch LCD Screen
    • Video System: PAL/NTSC
    • Resolution: 1024x768, 800x600, 1280x1024, 1440x900
    • Buttons: Power, Menu, Rec/stop, Play, Stop, Pause, Next, Rwd, Ffd, Ptz, Up, Down, Left, Right, Confirm, LCD power
    • LED lights: Power, Record, link, alarm, HDD full
    • Software version: T110324
    • Languages: English, Russian, Portuguese, Spanish, Turkish, Italian, French, Polish, Chinese

    Display
    • Display Size: 7 Inch
    • Non Touch Display

    Memory
    • SATA Hard Disk Drive up to 2TB (Not Included)

    Ports
    • SATA Hard Disk Drive Slots
    • Video input: 4CH
    • Video output: 1CH
    • Audio input: 4CH
    • Audio output: 1CH
    • Alarm input: 4x
    • Mouse USB Port
    • USB Port
    • DC IN
    • VGA Port
    • Cat5 Out
    • 4x DC12 Out
    • Nc1, no1, GND, 485+, 485-, 12V

    Dimensions
    • Main product dimensions: 210x200x130mm (L x W x D)
    • Main product weight: 2300g
    • Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

    Package Contents
    • 4CH DVR With 7 Inch Screen
    • Remote Control
    • Mouse
    • Power Adapter
    • Power Cable
    • User Manual
    • Screws and Fittings

    Ordering from Chinavasion provides you with the following benefits:
    • Orders processed and shipped within 24-hours
    • 12 month warranty
    • In-house QC
    • Member discounts
    • Award winning customer support
    • Quantity order discounts
    • Worldwide Shipping
    • Certification: CE, FCC, RoHS

    Foreign Language Keywords

    Arabic - نظام دفر قناة 4 مع شاشة 7 بوصة; Chinese Simplified - 4 通道 DVR 系统的 7 英寸屏幕; Czech - 4 Channel DVR systém s obrazovkou 7 palců; Danish - 4 Kanals DVR System med 7 tommer skærm; Dutch - 4 Kanaals DVR systeem met 7 inch scherm; French - Système DVR 4 canaux avec écran de 7 pouces; German - 4 Kanal DVR-System mit 7-Zoll-Bildschirm; Greek - 4 Κανάλι DVR σύστημα με οθόνη 7 ιντσών; Hebrew - מערכת DVR ערוץ 4 עם מסך 7 אינץ '; Hindi - 4 चैनल DVR प्रणाली 7 इंच स्क्रीन के साथ; Hungarian - 4 Channel DVR rendszer-val 7-lassan mászik képernyő; Italian - 4 Canali DVR System con schermo da 7 pollici; Japanese - 4 チャネル DVR システム 7 インチの画面; Korean - 7 인치 화면으로 4 채널 DVR 시스템; Norwegian - 4 Kanalen DVR System med 7 inch skjermen; Polish - 4 Kanałowy DVR System z 7-calowy ekran; Portuguese - Sistema DVR 4 canais com tela de 7 polegadas; Russian - 4 Канал DVR система с 7-дюймовый экран; Spanish - Sistema DVR de 4 canales con pantalla de 7 pulgadas; Thai - 4 ช่องระบบบันทึกภาพ ด้วยหน้าจอ 7 นิ้ว

    .

    Reviews for: (4 Channel DVR System - H264 DVR, 7 Inch Screen, 2x SATA HDD)

    Deliverystarrs 5starrs 5starrs 5starrs 5starrs 5
    Value for Moneystarrs 5starrs 5starrs 5starrs 5starrs 5
    Packagingstarrs 5starrs 5starrs 5starrs 5starrs 5
    Ease of Setup/Usestarrs 5starrs 5starrs 5starrs 5starrs 5
    Function/Performancestarrs 5starrs 5starrs 5starrs 5starrs 5
    Average Rating: 5 star rating 5 star rating 5 star rating 5 star rating 5 star rating  5 customer reviews





    Write Review
    by
    NLD
    verified buyer
    on
    5 star rating
    5 star rating
    5 star rating
    5 star rating
    5 star rating


    Works now for about 2 years 24/7/365.

    2012+ 2013 to 4-8-2014
    I like the DVR
    Use it with 3 camera’s 2 cctv 1 other


    I made some changes
    1. De original fan is to noisy. Cut it off, see point 3.
    2. I placed a extra very silent big fan (700 x tpm) made/type by “Noiseblocker” (20 euro’s)
    3. I placed a extra thermo control module (5 euro’s) to control de main chip temp, when it is to hot, or to hot in the DVR, the original fan starts to blow for a sort time.

    Together it works perfect.

    by
    NLD
    verified buyer
    on
    5 star rating
    5 star rating
    5 star rating
    5 star rating
    5 star rating


    Works now for about 1 jaar 24/7/365.
    I like the DVR
    Use it with 3 camera’s 2 cctv 1 other

    I made some changes
    1. De original fan is to noisy. Cut it off, see point 3.
    2. I placed a extra very silent big fan (700 x tpm) made/type by “noiseblocker” (20 euro’s)
    3. I placed a extra thermo control module (5 euro’s) to control de main chip temp, when it is to hot, or to hot in the DVR, the original fan starts to blow

    Together it works perfect.
    by
    on
    5 star ratingGood product

    Good product. But how and where I can download and update firmware?


    by
    on
    5 star ratingExcellent!!!

    Pack full of features. Easy to use. I love it. Work fine with wireless cameras. Excellent CMS. Cool!


    by
    on
    4 star ratingNice but would like to know if product works with wireless cameras

    Very nice product just needs a bit more info.


    Date Launched: Aug 25 2011
