This product is out of stock, and not coming back.
It may have been replaced by a newer version, see replacement/alternatives listed below.

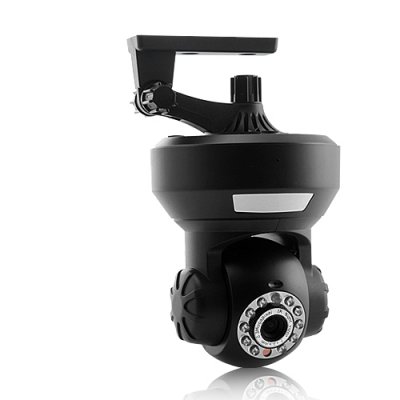

IP Surveillance Camera (IR Cut, H.264, Nightvision, Angle Control, Micro SD, Motion Detection)

Product code: CVUL-I220
Motion Detect IP Camera H264
Motion Detect IP Camera H264
Keep your surveillance solution up to date with the latest and greatest features from this IP Surveillance Camera by Chinavasion.

Whether you're at the airport in Hong Kong or a coffee shop in California, you’ll be able to check the security status of your home or business from any computer in the world that has an internet connection - that's the benefit of IP cameras. Not to mention, you can do more than just watch - manage an array of functions and change, modify, implement, or view. This model provides true versatility in its applications.

Cramming function after function into a mobile and lightweight design, this IP Surveillance Camera comes with everything needed to easily and completely monitor your home, business, or office. The advanced H.264 video compression delivers higher quality video in a significantly smaller amount of time and space. Paired with the new infrared (IR) cut-off filters, this camera delivers great clarity and image quality that shows every detail, allowing you to easily identify people and recognize objects, even in environments with very poor lighting conditions.

This IP Surveillance Camera is on duty 24/7, even when you're not watching. The motion detection feature allows you to monitor a specific area in view and will alert you via email when it records something, or automatically start recording video onto a micro SD card. Along with the automatic nightvision, there's nothing to worry about.

You can now truly say that you've got eyes at the back of your head. This powerful smart IP security camera with cycled recording, H.264, IR filter, night vision and motion detection recording is in stock now, and available to you at a factory wholesale price. Click "add to cart" now and we will express ship out your order tomorrow. Good for dropship sales as well as internet storefronts.

At a Glance...

  • Wireless IP Surveillance Camera
  • IR Cut-off Filter
  • H.264 Video Compression
  • Automatic Nightvision
  • Angle Control
  • Motion Detection with Email Alert
  • WEP, WPA, WPA2 Encryption


Manufacturer Specifications

  • Image Sensor
    Image Sensor:1/4" Color CMOS Sensor
    Display Resolution:640 x 480 Pixels(300k Pixels)
    Lens: f: 3.6 mm, F:2.0 (IR Lens)
    Mini. Illumination: 0.5Lux
    Maximum micro sd card support: 32gb
  • Lens
    Lens Type:Glass Lens
    Viewing Angle: 75 Degree
  • Audio
    Input:Built-in Microphone/1 channel audio input
    Output: 1 channel audio output
    Audio Compression: ADPCM
  • Video
    Image Compression: H.264, MJPEG
    Image Frame Rate: 30fps(VGA),30fps(QVGA)
    Resolution: 640 x 480(VGA), 320 x 240(QVGA)
    Flip Mirror Images:Vertical / Horizontal
    Light Frequency: 50Hz, 60Hz
    Video Parameters: Brightness, Saturation, Contrast, Hue
  • Communication
    Ethernet Interface:Build in 10/100Mbps,Auto MDI/MDIX , RJ-45
    Compress rate level: 128Kbps~4Mbps
    Wireless Standard:IEEE 802.11b/g
    Data Rate: 802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.);
    Wireless Security: WEP & WPA WPA2 Encryption
  • Physical
    Pan/Tilt Angle:Horizontal:270° & Vertical: 120°
    Infrared Light:10 IR LEDs, Night visibility up to 15 meters
    Alarm Input:1 Channel on/off Input
    Alarm Output: 1 Channel relay Output
  • Power
    Power Supply:DC 5V/2.0A (EU,US,AU adapter or other types optional)
    Power Consumption: 7 Watts (Max.)
  • Environment
    Operate Temper:0° ~ 55°C (14°F ~ 131°F)
    Operating Humidity:20% ~ 85% non-condensing
    Storage Temper:-10°C ~ 60° (14°F ~ 140°F)
    Storage Humidity:0% ~ 90% non-condensing
  • PC System Requirements
    CPU: 2.0GHZ or above (suggested 3.0GHz)
    Memory Size: 256MB or above (suggested 1.0GHz)
    Display Card: 64M or above
    Supported OS: Microsoft Windows 2000/XP/Vista/7
    Browser: IE6.0/7.0/8.0/Firefox/Safari/Google chrome or other standard browsers
    Certification: CE, FCC, RoHS

Package Contents

  • IP Surveillance Camera
  • Antenna
  • Ethernet Cable
  • Power Adapter
  • Mounting Bracket
  • User Manual
  • Fittings

FAQ - Frequently Asked Questions

  • Why is H.264 Important?
    Simply put, H.264 delivers higher quality video in a significantly smaller about of time and space!
  • What is a Removable IR Cut Filter?
    This day and night camera delivers colour images during the day. As light diminishes below a certain level, it can automatically switch to night mode to make use of near infrared (IR) light to deliver high-quality, black and white images. Near-infrared light, which spans from 700nm to 1000nm, is beyond what the human eye can see, but this camera sensor can detect it and make use of it. During the day, a day/night camera uses an IR-cut filter. IR light is filtered out so that it does not distort the colours of images as the human eye sees them. When the camera is in night mode, the IR-Cut filter is removed, which allows the camera's light sensitivity to reach down to extremely low lux levels!

Ordering from Chinavasion provides you with the following benefits:
    • Orders processed and shipped within 24-hours
    • 12 month warranty
    • In-house QC
    • Member discounts
    • Award winning customer support
    • Quantity order discounts
    • Worldwide Shipping
    • Certification: CE, FCC, RoHS
