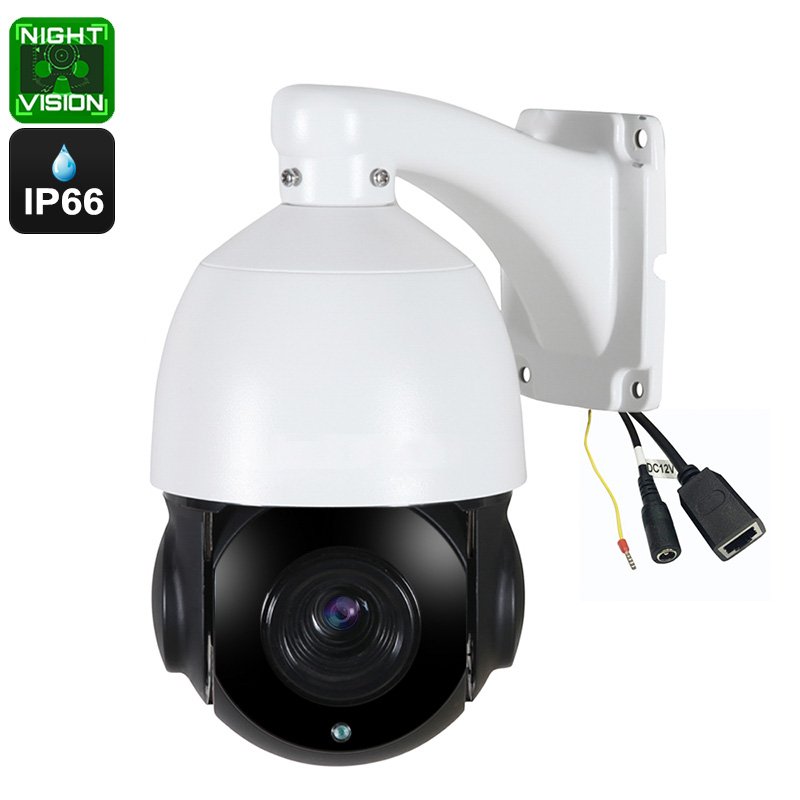

PTZ Dome Camera - 20X Optical Zoom, 60 Meters Night Vision, 1/3 Inch 5MP CMOS, Support P2P, ONVIF Compliance, IP66

PTZ Dome Camera


Product code: CVAET-I603

PTZ Dome Camera
Left
Invest in the PTZ Dome camera for keeping your property safe  It features a full HD camera  P2P support  up to 20X optical zoom  and IP66 rating  Invest in the PTZ Dome camera for keeping your property safe  It features a full HD camera  P2P support  up to 20X optical zoom  and IP66 rating  Invest in the PTZ Dome camera for keeping your property safe  It features a full HD camera  P2P support  up to 20X optical zoom  and IP66 rating  Invest in the PTZ Dome camera for keeping your property safe  It features a full HD camera  P2P support  up to 20X optical zoom  and IP66 rating  Invest in the PTZ Dome camera for keeping your property safe  It features a full HD camera  P2P support  up to 20X optical zoom  and IP66 rating  Invest in the PTZ Dome camera for keeping your property safe  It features a full HD camera  P2P support  up to 20X optical zoom  and IP66 rating  Invest in the PTZ Dome camera for keeping your property safe  It features a full HD camera  P2P support  up to 20X optical zoom  and IP66 rating  Invest in the PTZ Dome camera for keeping your property safe  It features a full HD camera  P2P support  up to 20X optical zoom  and IP66 rating  Invest in the PTZ Dome camera for keeping your property safe  It features a full HD camera  P2P support  up to 20X optical zoom  and IP66 rating
Right

What Do Customers Buy Together With This Item?

.
.
Key Features...
  • The camera has pan, tilt, and optical zoom feature to provide coverage for a wide area.
  • It offers great IR night vision of up to 60 meters great for 24x7 security.
  • The dome camera can be used indoors or out thanks to its IP66 rating.
  • 1/3 Inch 5MP OV4689 CMOS brings detailed video footage.

Excellent Dome Camera for Maximum Security


The PTZ Dome Camera is designed for providing maximum security and safety over a large open area. Thanks to the ability to turn completely around and tilt through 90 degrees it can do the job of several cameras all by itself. This PTZ camera can be programmed with up to 220 preset positions and there are 3 automated guard tours that can be set up as well. This means the camera can automatically cycle through set angles to provide expert coverage of different areas. The rapid rotation and tilt speeds mean that it cant be caught out and can be quickly repositioned to capture any action as it unfolds.

A 1/3 Inch 5MP OV4689 CMOS sensor captures high definition images and the 20 times optical zoom means it can get close up shots of people dozens of meters away. Ideal for taking note of registration plates, perpetrators features or interactions between conspirators. As well as have a programmable surveillance path the camera can be controlled and the feed viewed remotely via a computer or smartphone app available for iOS and Android devices. With the ability to have 3 remote visitors at once multiple people or surveillance teams can monitor the feed simultaneously from different locations on on different devices.

This dome camera is suitable for both indoor and outdoor use as it comes with a tough robust build and IP66 rating so it is sealed and protected from the wet and rainy weather. Furthermore, it provides 24x7 surveillance thanks to a powerful night vision IR array. This means it can pick out details even in low light up to 60 meters away, with the IR cut this security camera will automatically switch to IT night mode when the ambient lighting drops sufficiently.

Complying with the ONVIF 2.4 protocol brings reassurance that this network security camera will work with most other major cameras and security setups so you can integrate it into your existing system or add to your security setup in the future when its time to expand.

This PTZ Dome Camera is available with a 12 months warranty. It is offered to you by the leader in electronic devices as well as wholesale IP cameras and security gadgets..
Manufacturer Specifications

    General
    • Security: Account, Password user authentication
    • Mobile Phone Monitor: HD mobile phone monitor, iPhone and Android
    • Plug and Play
    • ONVIF 2.4
    • Remote mobile playback technology support
    • Waterproof Rating: IP66

    Video
    • Compression Format: H.264/H.265
    • Frame Rate: 1 to 25 FPS (50Hz), 1 to 30 FPS (60Hz)
    • Resolution: Main stream: 5MP (2592x1944), 4MP(2592x1520), 1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1(720x480), VGA(640x480), Q720(640x352; Minor Stream:D1 (720x480), VGA (640x480), CIF (352x288)
    • Image Sensor: 1/3 Inch 5MP progressive scan CMOS
    • Lens: f=4.7-94mm
    • Viewing Angle: 60 Degrees
    • Minimum illumination: 0.1Lux / B+W: 0.01Lux

    PTZ
    • Motor: Built-in motor
    • Rotation Angle: Horizontal: 360 Degrees, Vertical: 93 Degrees
    • Rotation Speed: Pan: 0-200 degree/s , Tilt:0-100 degree/s
    • Preset: 220pcs presets(dwell time 01-60s interval available)
    • Zoom: 20X
    • A-B scan: User programmable (scan speed 1-64 levels setting available)
    • Guard Tours: 3 groups( Max.16 points, dwell time user selectable)

    Night Vision
    • Filter switch: IR cut filter auto-switch automatically
    • Night Vision: 6PCS Array 42Mil IR LED
    • IR Distance: up to 60 Meters

    Alarm
    • Alarm: Motion Detection
    • Detection Area: Support 4 Detection Areas
    • Alarm Notification: Email, Alarm

    Network
    • Network interface: RJ45, 10/100MB self-adaptable Ethernet slot
    • Basic Protocol: ONVIF 2.4
    • Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP,S MTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
    • IP Mode: Dynamic IP address, static IP address
    • Online Visitor: Support 3 Visitors at the same time

    System
    • System Requirement: Microsoft Win XP, Vista, Win 7, Win 8
    • Browser: IE6.0 and above (OCX plug-in), Google Chrome, firefox (VLC plug-in)

    Others
    • Waterproof Rating: IP66
    • Environment: Indoors / Outdoors
    • Power Supply Input: 110 to 240V, 50/60Hz; Output: DC 12V,3A
    • Power Consumption: less than 25W
    • Operating Temperature: -40 to +60 Degree Celsius
    • Operating Humidity: 10% to 95%
    • Lightning Protection: Transient voltage 6000V

    Ports
    • DC in
    • RJ45

    Dimensions
    • Main Product Dimensions: 240x200x140mm (L x W x D)
    • Main Product Weight: 1595g
    • Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

    Package Contents
    • IP Camera
    • Power Adaptor
    • CD
    • User Manual
