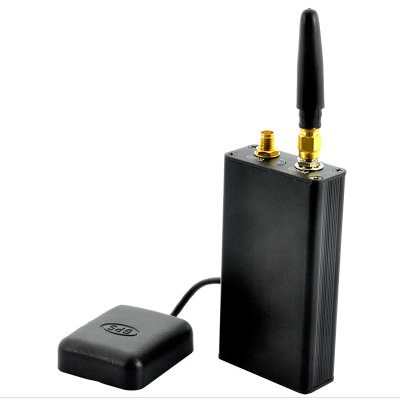

Mini GPS Tracker - Fleet Management Data Logger, Vehicle Protection, GSM Quad-band

Mini GPS Car Tracker + Logger w/ 4 Band GSM


Product code: CVNI-G223-2GEN


Mini GPS Car Tracker + Logger w/ 4 Band GSM
Left
GPS Tracker Mini data logger with GSM Quad band is a great addition to increase the safety and boost protection for any vehicleGPS Tracker Mini data logger with GSM Quad band is a great addition to increase the safety and boost protection for any vehicleGPS Tracker Mini data logger with GSM Quad band is a great addition to increase the safety and boost protection for any vehicleGPS Tracker Mini data logger with GSM Quad band is a great addition to increase the safety and boost protection for any vehicleGPS Tracker Mini data logger with GSM Quad band is a great addition to increase the safety and boost protection for any vehicleGPS Tracker Mini data logger with GSM Quad band is a great addition to increase the safety and boost protection for any vehicleGPS Tracker Mini data logger with GSM Quad band is a great addition to increase the safety and boost protection for any vehicleGPS Tracker Mini data logger with GSM Quad band is a great addition to increase the safety and boost protection for any vehicleGPS Tracker Mini data logger with GSM Quad band is a great addition to increase the safety and boost protection for any vehicleGPS Tracker Mini data logger with GSM Quad band is a great addition to increase the safety and boost protection for any vehicle
Right


.
Mini GPS Car Tracker + Logger w/ 4 Band GSM
Mini GPS Car Tracker + Logger w/ 4 Band GSM
$46.73

See alternatives:

.
GPS tracker and data logger with GSM Quad-band control is a great addition to increase the safety and boost protection for any vehicle

This is the GPS Vehicle Tracker for global vehicle tracking. With its convenient SMS control you will be getting a full-range of alarm functions for an ultimate safety device for your bike, car, van, truck, or even the entire vehicle fleet. One such great function is Geo-fencing; if the vehicle moves in/out the preset scope, it will send an SMS alarm to the authorized phone numbers. Another great SMS control option will allow you to prevent theft by sending a SMS message to the tracker to cut off the engine and battery power, so the engine will remain in an immobilized state until your remove the alarm status. This is also combined with the ability to monitor and track the latitude, longitude, speed, and time, as well as an Internet map link to your mobile phone to show you exactly where the GPS tracker/your vehicle is.

The GPS Tracker Mini is powered directly by your vehicle and should be installed inside the vehicle including antenna. With the latest JRC GPS module chip-set, microchip embedded into the tracker allows it to read your location from the many global satellites. It utilizes the GSM infrastructure operated by your cellular network provider to transmit its current location to you. All you need to do is insert a working SIM card and it’ll work anywhere in the world.

This mini GPS gadget is in now in stock and ready to be shipped. Order now and have this product shipped out within 24 hours with a 12 month warranty. Brought to you by the leaders in Chinese wholesale electronics and GPS trackers, Chinavasion.

At a Glance...
  • GPS Tracking and Logging
  • Location Send Directly to your Phone
  • Global coverage with Quad-Band GSM
  • SMS Functions Including Immobilize your vehicle, Geo-Fence and SOS
.
Manufacturer Specifications

    General
    • Network: GSM / GPRS
    • 2G: GSM 850/900/1800/1900MHz
    • Working Temperature: -20-55 Degrees Celsius
    • Humidity: 5% to 95% non-condensing
    • Power Source: Car Battery
    • Power Supply Voltage: 12-24 Volts
    • OS compatibility: Windows 7, Windows Vista

    GPS
    • GSM/GPRS Module: JRC GPS module
    • GPS Sensitivity: -159 dBM
    • GPS Accuracy: 5 M
    • Altitude Limit: 18,000 meters (60,000 feet) max
    • Velocity Limit: 515 meters/second (1000 knots) max
    • Acceleration Limit: Less than 4g
    • Cold Status: 45s
    • Warm Status: 35s
    • Hot Status: 1s

    Alarms, Alerts, Security Functions
    • Real-Time Tracking
    • Remote Fuel Cut Off
    • Geo-Fence
    • SOS

    Ports
    • SIM Card Slot - GSM
    • GSM Antenna
    • GPS Antenna

    Dimensions
    • Main product dimensions: 83x45x19mm (L x W x D)
    • Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

    Product Notes
    • Comes with detailed instructions on how to work with GPRS enabled SIM and setup internet monitoring (fixed IP only), so constant tracking information can be displayed on a detailed map

    Package Contents
    • GPS Tracker
    • Antenna

    • GPS Antenna

    • Manual CD

    • GSM Antenna

    • Wire Connector


    FAQ - Frequently Asked Questions
    • How do I make sense of the longitude and latitude data this unit provides? Both Google Maps and Google Earth can easily translate the data into usable visual information.

    Ordering from Chinavasion provides you with the following benefits:
    • Orders processed and shipped within 24-hours
    • 12 month warranty
    • In-house QC
    • Member discounts
    • Award winning customer support
    • Quantity order discounts
    • Worldwide Shipping
    • Certification: CE, FCC, RoHS

    Foreign Language Keywords

    Arabic - نظام تحديد المواقع المقتفي ميني البيانات المسجل، جي إس أم رباعية الموجات; Chinese Simplified - GPS 跟踪器微型数据记录器,GSM 四频; Czech - GPS Tracker Mini data Logger, GSM Quad-band; Danish - GPS Tracker Mini data Logger, GSM Quad-band; Dutch - GPS Tracker Mini gegevens Logger, Quad-band GSM; French - Données GPS Tracker Mini enregistreur, GSM quadri-bande; German - GPS Tracker Mini Daten-Logger, GSM Quad-band; Greek - Μίνι ιχνηλάτης GPS δεδομένων έμπορος ξυλείας, GSM τετράγωνο-ταινιών; Hebrew - GPS Tracker מיני נתונים לוגר, GSM Quad-band; Hindi - जीपीएस ट्रैकर मिनी डेटा लकड़हारा, Quad-बैंड जीएसएम; Hungarian - GPS Tracker Mini data Logger, belső udvar-szalag GSM; Italian - Dati GPS Tracker Mini Logger, GSM Quad-band; Japanese - GPS トラッカー Mini データ ロガー、GSM クワッド バンド; Korean - GPS 추적기 미니 데이터로 거, GSM 쿼드 밴드; Norwegian - GPS Tracker Mini data ført inn i loggbok, kvadrant-bånd GSM; Polish - Dane GPS Tracker Mini rejestrator, czterozakresowy GSM; Portuguese - Dados de GPS Tracker Mini Logger, GSM Quad-band; Russian - GPS Tracker мини данных Logger, Quad диапазона GSM; Spanish - Datos GPS Tracker Mini registrador, GSM Quad-band; Thai - ขนาดเล็ก Tracker GPS data Logger, GSM Quad-band

    .
    Date Launched: Aug 22 2012
