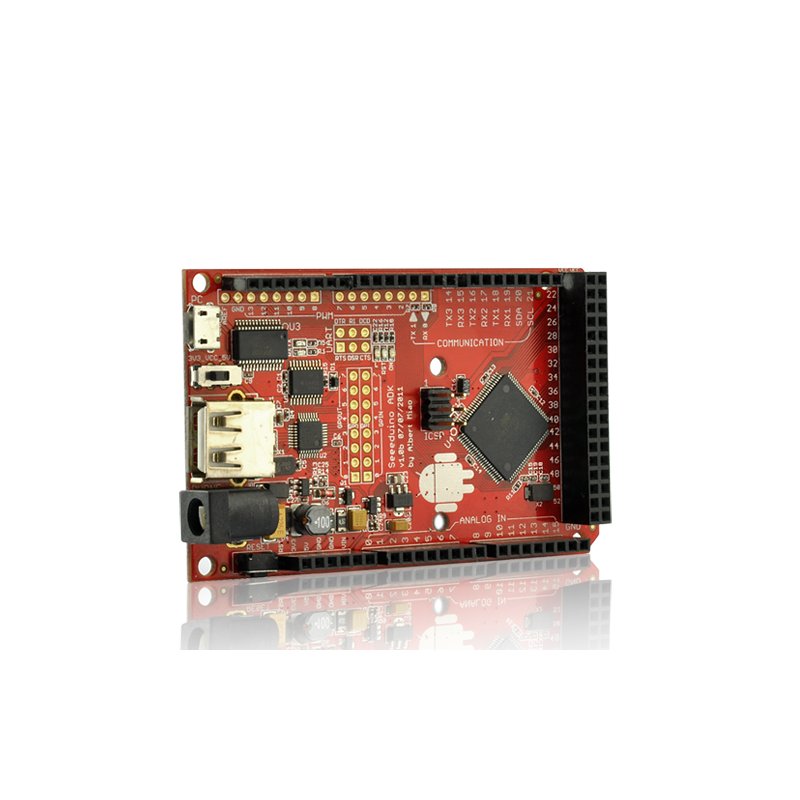

Seeeduino Google Android Open ADK Main Board (Arduino Mega 2560 + USB Host)

Seeeduino Android ADK Main Board


Product code: CVWP-K175


Seeeduino Android ADK Main Board
Left
CVWP K175  Introducing the next big thing in tech world   Android Arduino open accessory development kits  Create and program your own accessories with this   CVWP K175  Introducing the next big thing in tech world   Android Arduino open accessory development kits  Create and program your own accessories with this   CVWP K175  Introducing the next big thing in tech world   Android Arduino open accessory development kits  Create and program your own accessories with this   CVWP K175  Introducing the next big thing in tech world   Android Arduino open accessory development kits  Create and program your own accessories with this   CVWP K175  Introducing the next big thing in tech world   Android Arduino open accessory development kits  Create and program your own accessories with this   CVWP K175  Introducing the next big thing in tech world   Android Arduino open accessory development kits  Create and program your own accessories with this   CVWP K175  Introducing the next big thing in tech world   Android Arduino open accessory development kits  Create and program your own accessories with this
Right


.
Seeeduino Android ADK Main Board
Seeeduino Android ADK Main Board
$64.55
.
Introducing the next big thing in tech-world: Android Arduino open accessory development kits.

Do you have a great idea for an Android accessory? Then this Seeeduino Android ADK main board is the go-to choice for DIY’ers everywhere. Using the Seeeduino, you’ll be prototyping your custom designed product in mere hours. Just search online for “Arduino tutorials” and you’ll find limitless resources teaching you how to program things like robots, washing machine controllers, automated desk lamps, fish feeders and even 3D printers. Whatever gadget you want to build, it’s possible using the Arduino ADK board!

What is the Android Open Accessory Development Kit?
The Android 3.1 platform (also backported to Android 2.3.4) introduces Android Open Accessory support, which allows external USB hardware (an Android USB accessory) to interact with an Android-powered device in a special "accessory" mode. When an Android-powered device is in accessory mode, the connected accessory acts as the USB host (powers the bus and enumerates devices) and the Android-powered device acts as the device.

On top of that, Mega2560 is the latest release of the Arduino Mega series and includes an upgraded chip set with 256k flash memory (double the original mega board's memory). Additionally, you get more programming space and more complex functionality. The thing is a beast with 54 digital input/output pins (14 of those offering PWM), 16 analog inputs, 4 Serial UARTs, and a built-in USB host shield. The sky is truly the limit for what can be done with this board.

This Seeduino Google Android Open ADK Main Board is available in our warehouse now. Order yours today and we'll ship it out tomorrow. Brought to you by your source for cool high tech gadgets, Chinavasion.

At a Glance...

  • Supports Android v2.3.4 and above devices
  • Arduino Mega 2560 compatible (256K Flash MCU)
  • Red PCB, ROHS compatible and Golden finish
  • 5v/3v3 IO Level selectable
  • On board USB host makes it easy to interact with USB devices like pen drivers, keyboard, mouse, Bluetooth dongles.


PLEASE NOTE: Please make sure you fully understand what this product does, as we DO NOT provide assistance with its usage or setup, nor do we include any warranty. A user manual is also NOT provided, however, there are plenty of online resources available.
.

Manufacturer Specifications

  • Android Open Accessories development Kit (ADK) compatible:
    Supports Android v2.3.4 and above devices.
  • Works with Android Debug Bridge (ADB) using MicroBridge :
    Supports Android v1.5 and above devices.
  • Arduino Mega 2560 compatible (256K Flash MCU)
  • Simply works like an Arduino Mega with an integrated USB Shield
  • Inputs and slots:
    56 Digital IOs
    16 Analog inputs
    14 PWM outputs
    4 Hardware serial ports (UART)
    1 Hardware TWI (I2C)
    1 Hardware SPI (up to 8Mbps)
    On board USB host(MAX3421), and breakout for all I/Os pins.
    On board USB slave(FT232RL), and IOs breakout
    Build-in 5V-1A switched power regulator (input range 6V - 18V)
    Build-in 3.3V-500mA LDO power regulator.
    Red PCB, ROHS compatible and Golden finish.
    5v/3v3 IO Level selectable (Atmega2560 running on 16MHz@3.3v is a bit over-clock, but according to the test result, works fine).
  • Dimensions: 86 x 53 x 10 mm


Product Notes

  • Please make sure you fully understand what this product does, as we CANNOT assist with its usage. A user manual is also NOT provided, however, there are plenty of online resources available.


Package Contents

  • Seeeduino Google Android Open ADK Main Board


  • Ordering from Chinavasion provides you with the following benefits;
    - Orders processed and shipped within 24-hours
    - 12 month warranty
    - In-house QC
    - Member discounts
    - Quantity order discounts
    - Worldwide Shipping

  • Login For Wholesale Discount Prices
  • Comparing Products? Please see our {USB Accessories} category
.
Date Launched: Sep 28 2011
