SATA RAID Enclosure - Deluxe 2-Bay Storage Edition


More Product Recommendations:

What Do Customers Buy Together With This Item?

SATA RAID Enclosure
SATA RAID Enclosure

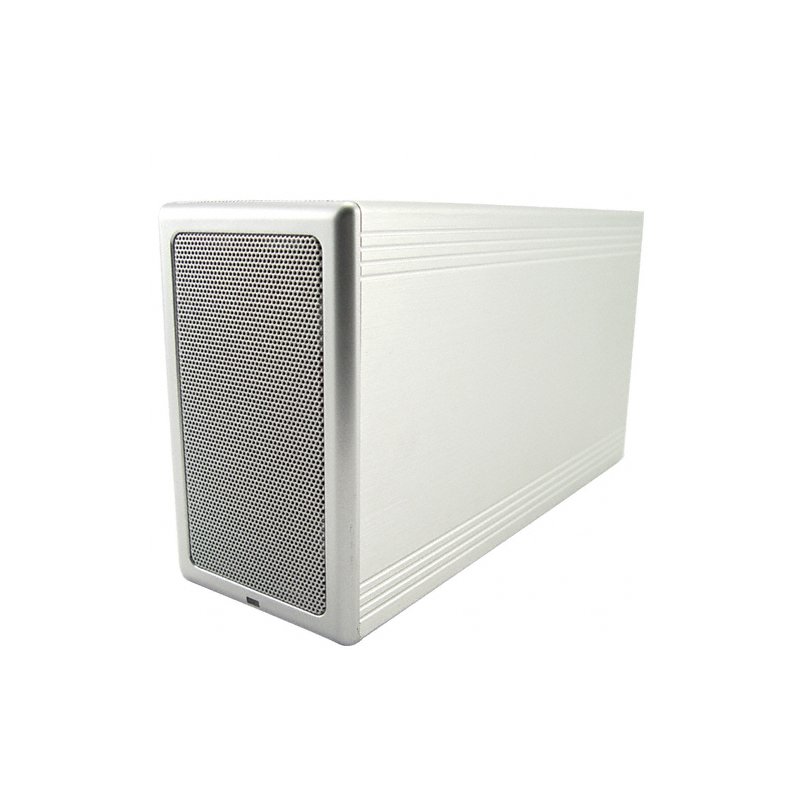

SATA RAID enclosure with two bays for safe and quick storage of all your important computer data. This deluxe storage drive enclosure can support the installation of one or two 3.5" SATA hard disk drives.
The new RAID type storage technology means quick and safe storage of active use or archive data. RAID stands for Redundant Array of Independent Disks or also called Redundant Array of Inexpensive Disks, and for anyone needing quick and reliable storage of their valuable data, RAID could just as well mean heaven. This model supports SATA II (or USB 2.0) for ultra fast transfer speed and has slots for two drive bays, meaning the enclosure could address up to 1TB of information. Installation and setup is easy; the simple DIP switches on the back of the drive allow you to choose the RAID level of your choice, so the choice of either redundant data backup or blazing speed is up to you.
At Chinavasion we continuously expand our product selection to give you the greatest selection of computer products for resale, OEM, or company/personal use at direct wholesale prices. We make it easy with direct shipping and no M.O.Q (minimum order quantity), so login now and order yours today.

At a Glance...
  • SATA RAID enclosure supporting SATA-II or USB to computer connection.
  • Easy installation and setup.
  • RAID; the most reliable way of safely storing your most important data.

Note: This product is not sold with HDD's (hard disk drives) included. You will need to purchase your hard disks separately. The SATA type HDD will also need to be formatted for the enclosure to address it.


China Manufacturer Specifications

  • Main function: SATA RAID enclosure system - safe guard your valuable data
  • Compatible Systems: Windows 2000/XP/Vista, Mac OS 10.3.9 or newer, Linux
  • Recommended minimum hardware specs:
    - Intel PIII at 500Mhz or Mac G4 at 500Mhz
    - 128MB RAM
    - One SATA port -OR- One available USB 2.0
  • Supported RAID Levels
    - RAID 0 (FAST)
    - RAID 1 (SAFE)
    - RAID 0+1
    - RAID SAFE 33
    - RAID SAFE 50
    - RAID BIG
  • Enclosure
    - Disk Drive Type: Supports up to two SATA 3.5 Inch HDD's
    - Disk Drive Size: Supports up to 500GB's each bay
    - Speed: Up to 3GB p/s with SATA II or 480MB p/s with USB 2.0 high speed
    - Connection: Supports USB 2.0 and SATA II
  • Input/Controls
    - 1 USB
    - 1 ON/OFF switch
    - 1 ESATA
    - 1 Power Connection
    - 1 DIP Switch Panel
    - 1 Reset Button
    - 2 Cooling Fans
  • Dimension: 218mm x 80mm x 133mm (L x W x D)
  • Manufacturer Ref.: AT1MQPY92910

Other Features:

  • Capable of various safe or speed modes via three simple DIP switch settings on rear of enclosure
  • No special software required
  • Enclosure made of solid heavy gauge construction; sides are stamped in cooling mesh pattern

Package Contents:

  • Model CVSB-986 SATA Raid Enclosure
  • User Manual - English
  • USB 2.0 cable
  • ESATA cable
  • Power Adapter (110-240V 50/60hz)
  • x8 hard disk drive installation screws

  • Manufacturer and Origin: China
  • Login for Wholesale Discount Price

Even lower prices available for you if you're ordering in larger wholesale quantities. Get your samples first then contact us for your personal discount quotes!

If you wish to make comments or reviews about this product, login and use the product review box. Please open an inquiry ticket if you have questions regarding this product.

Date Launched: Oct 07 2008
