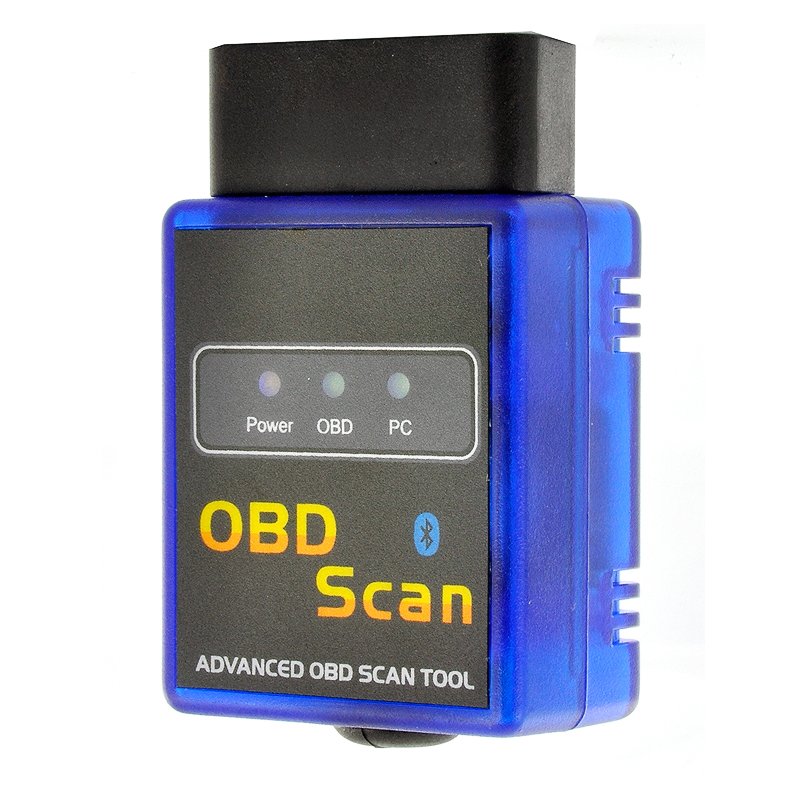

OBD2 Car Diagnostic Tool - Bluetooth

Average Customer Rating:  based on 2 reviewsprice range: 13.97 - 13.32
Product code: CVSN-A168
OBDII Car Diagnostic Tool
OBDII Car Diagnostic Tool
Avg Customer Rating:
OBD2 car diagnostic tool with wireless bluetooth to windows PC and windows smartphone connection, gives you the chance to evaluate any issues you may have with your vehicle, so that you can prevent possible expensive future maintenance bills!

Simply connect this OBD2 diagnostic reader directly to your vehicle, then connect wirelessly to your Windows PC or Laptop, Windows mobile or other Windows device via Bluetooth and you're set. This device will allow you to evaluate your vehicles performance and so determine whether or not any future issues may arise.

This Bluetooth OBD2 car evaluation device is ideal for catching any possible future vehicle issues. Available in our warehouse now, order today and we'll ship it to you tomorrow. Order today and start saving money on car check-ups! Brought to you by Chinavasion, the leader in car accessories and wholesale electronics.

At a Glance...
  • Show real-time information as you drive directly on your laptop or Windows phone via App
  • Easy setup, just plug and play with instant Bluetooth wireless connection
  • OBD2 full vehicle diagnostics tool
  • Save on future car maintenance costs
  • OBD standard works with most cars and models

Manufacturer Specifications
  • Read diagnostic trouble codes, both generic and manufacturer-specific.
  • Clear trouble codes and turn off the MIL (Check Engine light)
  • Display current sensor data, including:
  • Engine RPM
  • Calculated Load Value
  • Coolant Temperature
  • Fuel System Status
  • Vehicle Speed
  • Short Term Fuel Trim
  • Long Term Fuel Trim
  • Intake Manifold Pressure
  • Timing Advance
  • Intake Air Temperature
  • Air Flow Rate
  • Absolute Throttle Position
  • Oxygen sensor voltages/associated short term fuel trims
  • Fuel System status
  • Fuel Pressure
  • Version: 1.5
  • Automatic
  • SAE J1850 PWM (41.6Kbaud)
  • SAE J1850 VPW (10.4Kbaud)
  • ISO9141-2(5 baud init,10.4Kbaud)
  • ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  • ISO14230-4 KWP (fast init, 10.4 Kbaud)
  • ISO15765-4 CAN (11bit ID, 500 Kbaud)
  • ISO15765-4 CAN (29bit ID, 500 Kbaud)
  • ISO15765-4 CAN (11bit ID, 250 Kbaud)
  • ISO15765-4 CAN (29bit ID, 250 Kbaud)
  • SAE J1939 CAN (29bit ID, 250XKbaud)
  • USER1 CAN (11xbit ID, 125xKbaud)
  • USER2 CAN (11xbit ID, 50xkbaud)
  • Works with all OBD2 compliant vehicles
  • Wireless (Bluetooth) 5-10meters
  • Software included for Windows Smartphone, Windows PC, Palm, PDA, Mobile

  • Main product dimensions: 70x45x25mm (L X W X D)
  • Main product weight: 42g
  • Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

Product Notes
  • IMPORTANT NOTE: As the wholesaler, we provide the package containing the Car OBD2 device. Chinavasion provides no customer support regarding its use. We cannot give advice regarding how to read codes or tell you if your model car is compatible with this particular product. If you have questions regarding the use of this device, we suggest you search for internet forums related to car maintenance.

Package Contents
  • Wireless OBD2
  • CD driver

Ordering from Chinavasion provides you with the following benefits:
    • Orders processed and shipped within 24-hours
    • 12 month warranty
    • In-house QC
    • Member discounts
    • Award winning customer support
    • Quantity order discounts
    • Worldwide Shipping
    • Certification: CE, FCC, RoHS
