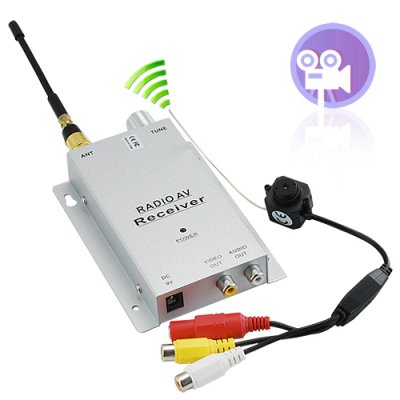

Micro 1.2GHz Wireless Pinhole A/V PAL Camera + Receiver Set

Average Customer Rating: based on 14 reviews
Product code: CVAJM-007AS-PAL

More Product Recommendations:

11 % buy Breathalyzer $6.80 39.8633 (7)	4 % buy Notebook Tool Bag $9.72 56.985 (3)
11 % buy Breathalyzer $6.80 39.8633 (7)	10 % buy Keychain Breathalyzer with flashlight $2.91 17.03 (16)

Mini wireless audio and video PAL camera and receiver security set, operating on the long range 1.2GHz transmitting frequency. Perfect for indoor use, this handy wireless set features a camera with low light 3Lux lens and the ability to be used as a wireless or a wired RCA camera, and an AV OUT for easy connection to such devices as a LCD screen or a VCR for recording live audio and video feeds.

This wholesale product has constantly been one of the best sellers, and is very popular with Chinavasion customers due to its consistent high quality and its reselling ability. Try it out for yourself today!

This model uses the PAL color system. If you need a NTSC model then order CVAJM-007AS-NTSC

Manufacturer Specifications

Receiver Specifications

Receiving Frequency: 1.2GHz
Intermediate Frequency: 480Mhz
Frequency Stabilization: +/-100Khz
Demodulation Mode: FM
Antenna: 50ohm SMA
Receiving Sensitivity: <-85dBm
Power Source: DC 9V
Dimension: 120x81x20mm (LxWxD)
Channels Available: 1
Channel Tuning for Multiple Cameras
AV OUT

Camera Specifications

Image Device: 1/3 CMOS
TV system: PAL
Horizontal Definition: 380TV Lines
Angular Field of View: 38 deg
Minimum Illumination: 3.0 Lux
Synchronization System: Internal
Backlight Compensation: Auto
White Balance: Auto
S/N Ratio: >48dB
Operation Temperature: 0~35 deg C
Transmission Frequency: 1.2GHz
Locked Frequency
Power Adapter: DC 9V or 9V Battery
Power Adapter input voltage: 110-240V
Dimension: 20x20x22mm (LxWxD)
Recommended Max Range for Objects: 5 Meters
Transmission Range: 12~15 Meters
Built In Microphone: Max Audio Range 1~2 Meters
Wireless or Wired RCA A/V Transmission
JMK Manufacturer Ref.: MH7YRWL3Y9CY

Package Contents

Wireless Pinhole A/V PAL Camera + Receiver
Antenna
AV Cable
9V Battery Power Adapter
x2 Power Adapters

FAQ - Frequently Asked Questions

What is the maximum operating range of the camera?
The maximum range is 12-15m.

Comparing Products? Suggested Alternative: Pinhole 1.2GHz Wireless A/V NTSC Camera + Receiver Set [CVAJM-007AS-NTSC]

Date Launched: 11th April 2005

Goto TOP

Reviews for: (Micro 1.2GHz Wireless Pinhole A/V PAL Camera + Receiver Set)

It's a pretty good deal. :) by Sam - on 2011-06-18 03:29:53

I bought this camera a while back, and I'm pleased with it.
it works just fine with the t.v. I have in my room, so thats all good. :)
The signal isn't too strong though, it picks up perfectly clear when in the same room, or one room away if there isn't too many objects in between, but for the price, I think its a good buy.
I just wanted this for video surveillance , so I'm, still happy with the product.

I'd recommend this to anyone who has a tight budget and wants to be able to see whats going on at home or work when you're not there.

love them by Kol007 - on 2010-10-09 03:46:26

Very good service, fast delivery and good quality.

Just arrived and tested.Pretty good results. by Markos Mathioulakis - on 2010-09-09 19:34:12

I just recieved this camera and finished testing it a while ago. At first I could't get a signal on the TV I connected the reciever, but after playing with the tuning wheel( I had to turn it all the way and put a little bit of force) I managed to get a very good signal at 2 meters distance. Then i took the camera at least 10 meters away through a corridor in the house and pluged it in the charger and still the signal was as good as before. For 19$ its a really good deal and I recommend it.
Note that, as mentioned in other comments above, if you want to use this camera with your computer, you need to have a TV Tuner card installed in order to connect the reciever's cables.

Muito bom material by Alexandre Manuel - on 2009-11-10 02:18:52

Comprei esta cam estou realmente satisfeito com o seu desempenho, é perfeita...
Uma grande qualidade de imagem e de som, atenção que não tem iluminação própria, ou seja, quando está de noite e sem luz, não capta nada... mas basta-lhe apenas um pouco de luz e já capta imagem, magnífico produto.

I bought this camer several years ago by Marisol Pareja - on 2009-11-04 22:31:39

It was great i was able to record my babysitter and fired her the very same day. She was sleeping the whole day while my daughter just sat and watched tv with no food or play the whole 8 hours. I was appalled. GET THIS IT DOES WORK!

USE THE SUPPORT SOFTWARE by CURKZ - on 2007-03-29 18:56:31

I think you people are posting comments in the wrong section if you have any questions about ChinaVasion products please use their support link

http://www.chinavasion.com/support/index.php

Director by Masood Ahmad Mirza - on 2007-01-06 16:14:10

we think this is a good hidden monitoring equipment and the need of the day

Good by Sydney - on 2006-08-23 09:25:30

The spycam is very practical to use, the little paper 'manual' don't have detailed instructions, it only says how to connect the cables but nothing about the instalation. Indoor you can only have a good reception within the same room. from another room, about 10meter away, it's not so great... snow on the image and a loud audio sound (beep). The audio remitance is lousy, you must speak hard in the camera. Don't expect to much from this camera. It's fun but for surveillance it isn't good.

by suneel kumar - on 2006-07-06 20:45:21

I have buy 2 sets of this camera and Receiver WS-007AS last years and i am happy two this now i want to put in all the roos in my office and whats going on there i want two see in my computer ,that buy i want one Receiver and 20 cameras plz tell me cost of only cameras and how can i by dairect

help by anthony choi - on 2006-03-07 14:29:12

im really intersted in purchasing a wireless pinhole camera that has audio that can hook up to my digital video camera... do the cables connect to the video camera like it would connect to a normal vcr??

help by Andrew - on 2006-01-22 09:45:03

i would like know if you guys need a dealer in the US to work for you guys cause the products that you guys offer is awesome and cheap alot cheaper than here so if you are interested i am the man you are looking for cause i do alot of selling on ebay and would like to help your company out by selling your products on ebay for you company...

little perfect by eRT - on 2006-01-17 12:43:55

hi all. i bought this tiny yesterday. i like it much. the view is not good if light is not enough.

TV Card by Bill - on 2006-01-15 19:20:05

Hi! If you want to use this small wireless spy camera on your PC, you have to use a TV Tuner Card. The output of the receiver is a 'normal' video signal (analogue) which you can connect to your TV for example.

Mnr by Edo - on 2006-01-15 06:23:48
