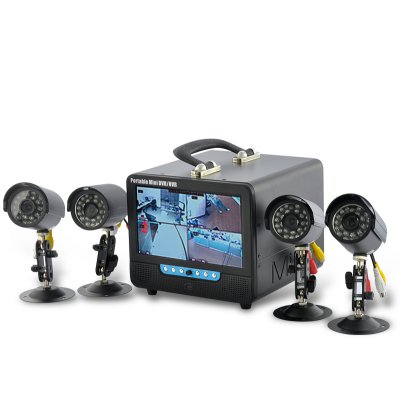

A great standalone solution for your security and DVR needs, this complete DVR security system comes with 4 cameras, a built-in 7 inch screen, and tons of useful features to give you everything you need to immediately set up your own security zone.
An Easy and Complete Security Solution Ideal for home and office, private and public, this DVR includes everything you need to instantly set up a security perimeter. With its easy and intuitive design, setting everything up is only a matter of minutes. When you're done, you can comfortably view and control everything from the main monitor unit, or even from online thanks to its internet capabilities. Also included is a mouse, remote control, and buttons on the monitor to make navigation that much easier and more fitting for your needs.
High Quality Compression on a 7 Inch LCD Screen With H.264 video compression, video records at a lower bit rate but with higher quality, which just means better video and less storage required. This quality made DVR comes with a built in 16 bit true color 7 Inch Screen, so there’s no need to buy 2 devices when you can get both functions in this awesome combination security device. You can even install a HDD into the casing and connect it up to record video to, and the security system will indicate the HDD's capacity for recording.
Hi-Tech Cameras This complete DVR security kit comes with 4 high quality surveillance cameras that will function day or night. Each one contains 24 infra-red LEDs, which will automatically activate and allow for 20-25 meters of camera vision in complete darkness, giving your home or business the protection it needs 24 hours a day. The cameras are also packed with an IR-cutoff filter and high sensititivy microphone, giving you both amazing video and amazing audio quality.
Great Wholesale Deal This Complete DVR Security System with 4x Cameras and Built-in 7 Inch LCD Screen comes with a great wholesale price that makes it perfect for the resale market, OEM market, or personal/company use. Why spend hundreds, even thousands, on separate components when this DVR set is complete and ready to go?! This amazing piece of technology is brought to you by the number 1 source for high tech electronic goods from China, Chinavasion.
At a Glance...
- Complete DVR Security System
- 4x Cameras with nightvision and microphone
- Built-in 7 inch LCD monitor
- H.264 video compression
- Control with USB mouse, remote control, monitor buttons, or online
- The best price available for a complete surveillance kit
Manufacturer Specifications
DVR System - Operation system: LINUX
- Interface: Imaging
- Resource: Realtime recording, playback, internet browsing
- Image
Display size: 7 inches
Display: Single / quad
TV system: PAL/NTSC
Video quality: D1(704*576)
Playback video quality: D1/CIF
View quality: 6 option
Recording Rate: PAL:25fps, NTSC:30fps
Motion detection: Per channel 22*18 detect area
Recording mode: Manual, alarm, motion detection, timer based
Local playback: 4ch simultaneously
Video query: Search by time, date, event, channel
Video record: Hard disk, remote recording, USB
Backup mode: Internet, USB storage - Video
Video input:4ch
Compression: H.264
Video output: 1ch BNC, 1ch VGA - Audio
Audio input: 4ch
Compression: G.711
Talk back: Built-in sound pick up
Audio output: 1ch RCA + built-in speaker - Alarm
Alarm input: 4ch
Alarm output: 1ch - Interface
PTZ control: RS-485
Network interface: Self-adapt RJ45 10M/100M
USB interface: USB2.0 x 2
HDD interface: SATA x1 (2TB max, not included)
Power adapter: DC12V/3A
Power consumption: =15W
Camera - Sensor: 1/4" color CMOS PAL
- Resolution:RGB 648X488
- Lens: f: 6mm, F=2.0 (IR lens)
- Minimum lux: 0.5
- Viewing angle: 45 degrees
- IR: 24 pcs, 20-25 meters of nightvision
- Dual-filter: Built-in auto exchange IR Cut filter
- Sound pick-up: Built in
Package Contents
- Portable DVR
- Power Connectors
- 4x Cameras
- USB Mouse
- CD
- User Manual
- 4x Camera Mounting Bracket
- Power Adapter
- 4x 18m Cable Extensions
- Remote Control
FAQ - Frequently Asked Questions
- Why can't I view the control page from my FireFox browser?
For best results, please use Internet Explorer (with Active X enabled) or the provided evaluation software. - Do the four cameras have audio?
Yes, a high quality microphone is installed on each camera. - Do I have to turn night vision on manually?
No, the cameras each have a light sensor that detects light levels and switches to nightvision/IR mode automatically.
