This is the ultimate security camera kit! Easily set up your own CCTV network to protect your family and belongings. The high quality kit contains everything you need to get going. With 8 indoor, 8 outdoor cameras and a DVR with a 1TB HDD, you’ll have every angle of your property covered.
This incredible and extremely versatile DVR is your professional and high performance audio and video solution for surveillance. Use this DVR at home, in stores, internet bars, small offices, or any other place you want to secure. Connect the DVR to a monitor and watch the surveillance video (you can choose any of the 16 cameras individually or have all the camera feeds on screen simultaneously) on site or program the unit to record with motion detection. And you don’t have to be around to watch your camera feed. Connect the DVR to the internet and you’ll be able to log in from anywhere in the world, even on your Smartphone!
The “Hexa” Kit comes with a Seagate 1TB hard disk drive which is good for weeks of stored video. But if that's not enough, easily install a second HDD using the provided cables. In-house testing has confirmed that this system can be equipped with maximum 2 SATA HDD’s providing 4TB of storage.
8 Outdoor + 8 Indoor Cameras for Complete Coverage: These amazing Surveillance cameras shoot high quality image in H.264 with a wide viewing angle. The outdoor cameras are made out of aircraft grade aluminum, equipped with a sliding hood and 12 Infrared (IR) night visions LED’s which turn on automatically when darkness falls. The indoor cameras are made out of durable plastic and pack 24 IR LED’s for a crystal clear view at night.
Easy to set up, easy to use, and easy on the wallet. If purchased separately the contents of the Hexa kit would easily approach $2000. With the Hexa Set, you save almost 70% and everything is compatible right out of the box! Brought to you by the online leader in security and surveillance solutions...Chinavasion.
At a Glance... - 8 Outdoor + 8 Indoor Cameras
- Professional DVR with 1TB Seagate HDD
- H.264 Recording
- 16 Channel
- Mobile phone support/Network function
- Motion Detection
Manufacturer Specifications DVR - Image Compression: H.264
- Display Resolution: PAL:720x576 (D1), NTSC:720x480 (D1)
- Recording Resolution: 352x288 (CIF), NTSC:352x240 (CIF)
- Image Frame Rate: 400 FPS (PAL), 480 FPS (NTSC)
- Audio Compression: ADPCM
- Operation System: Embedded Linux
- Play Back: 1CH-16CH Playback Simultaneously
- Image Control: 6 Grade Adjustable
- x2 SATA Hard Disk Drive Slots
- Record Save: Local hard disk, USB Ports, Network
- Record Mode: Manual, Timing, Alarm, Motion Detection
- Record Search: Time, Event, Channel, Diary Search
- Motion Detection
- Operation Interface: USB Mouse, Panel button, and Remote Control
- Power: DC 12V
- Languages: English, Simplified Chinese, Traditional Chinese(Big5), Portuguese, Spanish, Turkish, Hungarian, French, German, Polish, Persian, Italian, Russian ,Japanese, Thai
DVR Memory - x2 SATA Hard Disk Drive supports up to 2TB Each (1TB Seagate 7200rpm Included)
DVR Ports - Video Input: 16CH BNC
- Video Output: 1CH BNC, 1CH VGA
- Audio Input: 4CH RCA
- Audio Output: 1CH RCA, and 1CH Interphone
- Alarm Input: 4CH
- Alarm Output: 1CH
- USB: 2 (Mouse + USB Disk)
DVR Connectivity - Ethernet: RJ-45 Interface 10/100Mbps
- Supported Protocol: HTTP,SMTP, FTP, DDNS, PPOE
- Mobile Phone Browser: Windows Mobile, Symbian S60, iPhone, Blackberry and Android
- Internet Browser: IE
- Mobile Phone Browser: Iphone, Symbian OS, Blackberry and Android Operation System
Outdoor Camera - Image sensor: 1/3 SONY CCD
- Horizontal Definition: 420 TV Line
- Lens: 6mm
- Viewing Angle: 45 degree
- Night vision: F=2.0 12 IR LED
- Minimum Illumination: 0.1 Lux
- Weatherproof: IP66
- Power: DC12V
Indoor Camera - Image sensor: 1/3 SONY CCD
- Horizontal Definition: 420 TV Line
- Lens: 6mm
- Viewing Angle: 45 Degree
- Night vision: F=2.0 24 IR LED
- Minimum Illumination: 0.1 Lux
- Power: DC12V
Dimensions - Main product dimensions: 210x250x120mm (L x W x D)
- Cable Length: 600mm
- Main product weight: 1200g
- Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

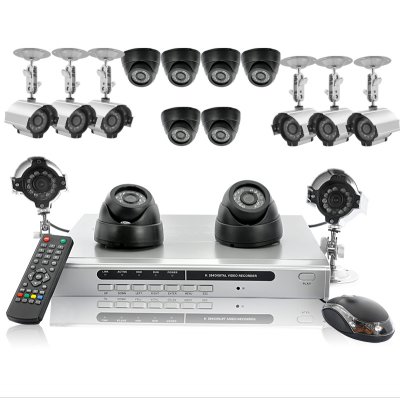

Package Contents - 16CH DVR
- 8x Outdoor Cameras
- 8x Indoor Cameras
- 4x Power Adapters
- 4x Power Cables
- 4x Longer Range Spliters
- 16x AV & Power Cables
- 4x Power Splitters
- 8x Mounting Brackets
- Mouse
- Screws
- Remote Control
- CD-ROM
- User Manual
Ordering from Chinavasion provides you with the following benefits: - Orders processed and shipped within 24-hours
- 12 month warranty
- In-house QC
- Member discounts
- Award winning customer support
- Quantity order discounts
- Worldwide Shipping
- Certification: CE, FCC, RoHS
