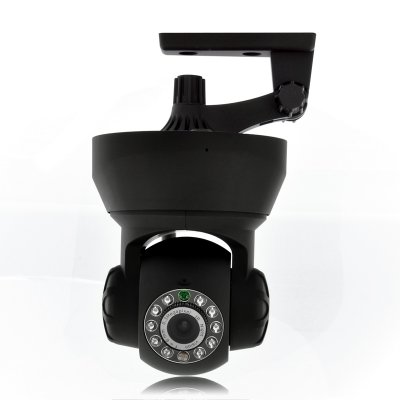

The ultimate Wired / Wireless IP Surveillance Camera that comes with IR filter and motion detection alarm recording function has arrived. Monitor and record from anywhere in the world.

Are you worried about security? Then we have found the perfect peace of mind gadget available in the market today. This is an IP Security Camera that has it all. IR cut-off filter for higher quality video, night vision, email alert, motion detection, quad screen viewing, tilt and maneuvering functions with a click of the mouse. You can set up to 4 IP cameras and give each a static IP, then go online from anywhere in the world by visiting the IP address and login to start monitoring.

Provided with an advanced IR filter this IP Surveillance Camera delivers great clarity and image quality. Used with CMOS imagers, infrared (IR) cut-off filters produce accurate color images. With the help of this technology every detail appears so distinctly thus allowing you to easily identify people and recognize objects, even in environments with very poor lighting conditions.

Once you are logged in, you can manage an array of functions and change, modify, implement, view, and do so much more than just sit and watch. This model provides true versatility in its applications with WiFi enabled and the additional option that allows this smart IP camera to alert you via email when the motion detection record function is activated.

Whether you're at an airport or a coffee shop, or you’re in Hong Kong, Paris, London, Barcelona, California, Moscow etc, you’ll be able to check the security status of your home or business from any computer or iPhone in the world that has an internet connection. The Wi-Fi feature on this global security camera with motion detection recording comes with a CMOS 1/4 inch sensor for providing you with a high quality image for over the web viewing and supports TCP/IP, DHCP, SMTP, TP, DDNS, UPNP and PPPoE network protocols.

Thanks to the night vision capability you can monitor and view your home or office any time, 24/7. The Wi-Fi feature comes with WEP encrypted security options, this helps in making sure your IP security camera system is protected from hackers. You can be at your office, Starbucks, or pretty much anywhere and still have full control of your security system to see what is going on at home.

You can now truly say that you've got eyes at the back of your head. This powerful smart IP Security Camera with IR filter, night vision and motion detection recording is in stock now, and available to you at a factory wholesale price. Click "add to cart" now and we will express ship out your order tomorrow. Good for dropship sales as well as internet storefronts.

At a Glance...

• IR filter
• Nightvision
• WEP encryption
• Worldwide access
• Both Wired and Wireless
• Connect up to 4 IP cameras
• Motion detect with email alarm
• Connect with WiFi or with LAN cable

.

Manufacturer Specifications

• Primary function: IP security camera with IR filter and motion detection recording
• Color: black
• Lens: f: 6mm, F:1.8 (IR lens)
• Image compression format: M-JPEG standard
• Image resolution: VGA (640x480), QVGA (320x240), QQVGA
• Sensor: CMOS 1/4 inch, 300000 pixels
• Horizontal rotating angle: 0-270 degrees
• Vertical rotating angle: 0-120 degrees
• Brightness adjustment: automatic (can be used outdoor)
• Alarm mode: motion detection/alarm and I/O alarm
• Video display: Microsoft media player
• Image display: single/quad
• Image transfer velocity: 30fps (QVGA), 25fps (VGA)
• Audio input/output: bidirection audio
• Minimum illumination: 0 LUX
• Video format: AVI
• Network interface: RJ-45/10-100 Base T 802.11b/g
• Network protocol: TCP/IP, DHCP, SMTP, TP, DDNS, UPNP, PPPoE
• Alarm control
  - Output: 1 channel (5V DC, 0.1A)
  - Input: 1 channel (closed trigger)
• Motion detection support: Yes
• Monitoring mode: IE, Firefox and Google browsers
• Software upgrade: automatic
• Security: user management system, password protection, password setting, administer, monitor, scrutiny
• White balance: automatic
• Working Temperature: 0 - 50 degrees, 20-80% PH
• Power adapter: AC 220-110V, 50-60Hz, DC 5V, 2A
• Power consumption: 3W
• System requirement: CPU from 2.0GHz
• Memory: from 256M
• Network card: from 10M
• Display card: yes
• UPNP and automatic port mapping: yes
• QVGA, VGA and max rate frame: yes
• PT speed adjustable function: yes
• Max set up 8 PTZ preset position: yes
• Multi-user remote access at the same time: yes
• FTP and email alarm: yes
• IR distance: 5-12 meters
• Mobile phone browsing: yes
• Both LAN and WAN viewing: yes
• Real-time video capture and recording: yes
• One channel external alarms input/output: yes
• DynDNS.org & Oray.net free DNS service: yes
• iPhone login: yes
• MSN login: yes
• Gmail, Hotmail, Yahoo email: yes
• VLC plug in player mode: yes

Main Screen Software Controls & Displays

• Viewing and recording (visitor)
  - Single screen
  - Multi screen
  - Add time stamp on record
  - OSD color
  - Audio buffer
  - Play, stop, snapshot,
  - Record - Audio, video, MIC record
• Operator
  -270 degrees panning control
  - Viewing options - Reversal, mirror
  - Resolution - 320 x 240, 640 x 480
  - Mode - 50 Hz/60Hz, outdoor
  - Brightness & contrast adjustments
• Administrator
  - User settings - Set up to 8 users
  - Set time & date - Sync with your PC and select from a list of Ntp servers
  - Multi-device options - This feature allows you to setup 4 IP cameras to monitor simultaneously
  - Basic network settings - Use the basic network settings to allocate IP addresses to each individual IP camera*
  - Wireless LAN settings - Comes with WEP encryption security options
  - ADSL settings
  - UPnP settings
  - DDNS service settings
  - Mail service settings - Set up mail alert
  - FTP service settings
  - Alarm service settings - Motion detection, alarm input, send mail on alarm, upload image on alarm

• Connectors/ports
  - Audio
  - Ethernet
  - Antenna
  - I/O alarm
  - DC 5V
• Languages: English, French, Spanish, Portuguese, Italian, Simplified Chinese, Traditional Chinese, German, Dutch, Russian, Japanese, Dutch
• Supported operating systems: Windows 2000/2003/XP/Vista/Windows 7
• Dimensions: 100 x 100 x H:120 (mm)

Product Notes

• Day or night, see who's there.
• Setup 4 cameras, and monitor different rooms.
• See it all, know it all, and catch them all, world wide surveillance at a click of your mouse.
• Records audio and video, so listen to what they are saying even if they are hiding from the camera.
• Nighttime viewing angle may change according to the lightning and environments

Package Contents

• IP camera
• Ethernet cable
• Mounting plate
• Wall screws x 2
• Power adapter
• CD (User manual - English, IP camera application)
• Antenna

Frequently Asked Questions

• What will happen if each IP camera uses of the same given or default IP
  Using the same IP on each camera will cause an IP conflict. Make sure you read the user manual carefully and thoroughly before installing the IP camera. If you are not an IT "savvy" individual then you should consult a IT technician to help you install this unit.
• Do I need a user name and password to access the admin controls once I visit the IP address of the security camera
  Yes, located in the user manual are the default user name and password, once you have logged in to the admin controls, make sure you change the default user name and password to something that you can remember but difficult for someone else to guess.
• Does the Motion detection have an included sensitivity control
  Yes It does, after you install the IP camera, log onto the admin panel and select the sensitivity option that best suits your needs. It is recommended that you test each sensitivity option as to best determine what it should be for your given need.
• What does IP stand for? Is this like a security camera?
  IP stands for Internet Protocol. This kind of camera can be used like a security surveillance or webcam, the choice is yours.
• My friend sent me a link to www.megaupload.com/****** where he says there is a better firmware/software for this camera. So how do I "flash" the firmware? Which version of firmware does this camera run?
  We do not recommend flashing the firmware and cannot give you links or advice on changing the specifications of the product. Yes, you can find updated firmware and/or upgraded software on the internet for this IP camera, but we cannot provide support or assistance in doing product modifications.
