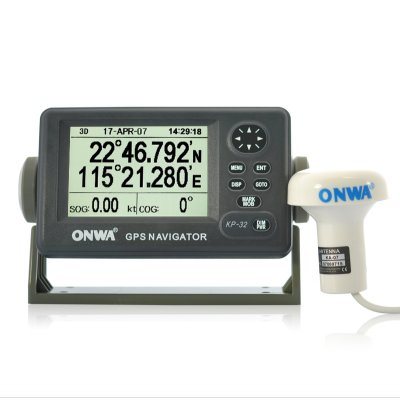

The Onwa KP-32 is an advanced marine GPS navigator with a SBAS receiver designed for coastal ships, fishing boats and pleasure craft.
This compact and cost-effective unit offers extremely accurate position fixes. The powerful processor is able of high-speed position fixing, accurate to 15 meters, and with SBAS mode activated, it's accurate to within 3 meters. The easy to use track plotter can store up to 2,500 track points, 50 routes and 999 Waypoints. Easily add new waypoints with the one-touch waypoint entry option.
Various display modes are available such as Plotter, Nav Data, Steering, Highway, Speedometer and two customizable modes. The Steering mode provides an intuitive indication of the course to steer and crosstrack-error (XTE). The Highway mode is useful when you are heading for your fishing ground or following a series of waypoints along a planned route. The user-friendly design permits easy and straightforward operation with minimum key strokes. Various alarm functions are built in to warn of arrival to or departure from a predefined area (arrival/anchor watch), XTE exceeding a preset limit, and more.
Offered at an amazing wholesale price, this item is now in stock for single or bulk purchase. Buy now and it ships out within one day. Brought to you by your source for China factory direct electronics – Chinavasion.
At a Glance... - Improved accuracy with built-in SBAS receiver
- 4.5″ Silver Bright LCD display
- Multiple display modes to suit a variety of navigational requirements
- Up to 999 waypoints, 50 routes and 2,500 track points
- One-touch waypoint entry
- Customizable NavData screens
- Track back feature stores waypoints at users defined intervals for early trace-back cruise
- Waypoint & Route upload/download through RS-232C port
Manufacturer Specifications General - Waterproof: Display Unit IPX5 / Antenna unit IPX6
- Output (NMEA0183 ver 2.0): AAM, APB, BOD, BWC, GGA, GLL, RMB, RMC, VTG, XTE, ZDA
- Display Modes: Plotter, Highway, Steering, Speedometer, Nav Date and 2 pages Customizable Display
- Alarms: Arrival, Anchor watch, XTE, Speed, Time, Trip, Odometer
- Working Temperature: Display unit: -15 to +55 / Antenna unit: -25 to + 70
- Power Source: 1224 VDC, 240-120 mA
- Languages: English, Spanish, French, Italian, Portuguese
GPS - Receiver Type: C/A Code, All-In-View, SBAS Receiver
- 12 Channels
- Receiver Frequency: L1(1575.42 MHz)
- Time to First Fix: 15 second average (Hot start)
- Tracking Velocity: 999 Knots
- Geodetic System: WGS-84
- Accuracy GPS: 15m (95%) / SBAS: 3m (95%)
Display - Display Size: 4.5 Inch
- Display Resolution: 240x160
- Non Touchscreen Display
- Data Display Only
Memory - Internal: 2,500 Ships Track Points, 999 Waypoints with Comments, 50 Routes, 30 Waypoints/Routes
Ports - GPS Antenna
- Power and Data
Dimensions - Main product dimensions: 200x140x80mm (L x W x D)
- Main product weight: 620gr
- Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.
Package Contents - Display Unit, built in SBAS Receiver
- Antenna with 10m Cable
- Power and Data Cable
- Screws
- User Manual
Ordering from Chinavasion provides you with the following benefits: - Orders processed and shipped within 24-hours
- 12 month warranty
- In-house QC
- Member discounts
- Award winning customer support
- Quantity order discounts
- Worldwide Shipping
- Certification: CE, FCC, RoHS
