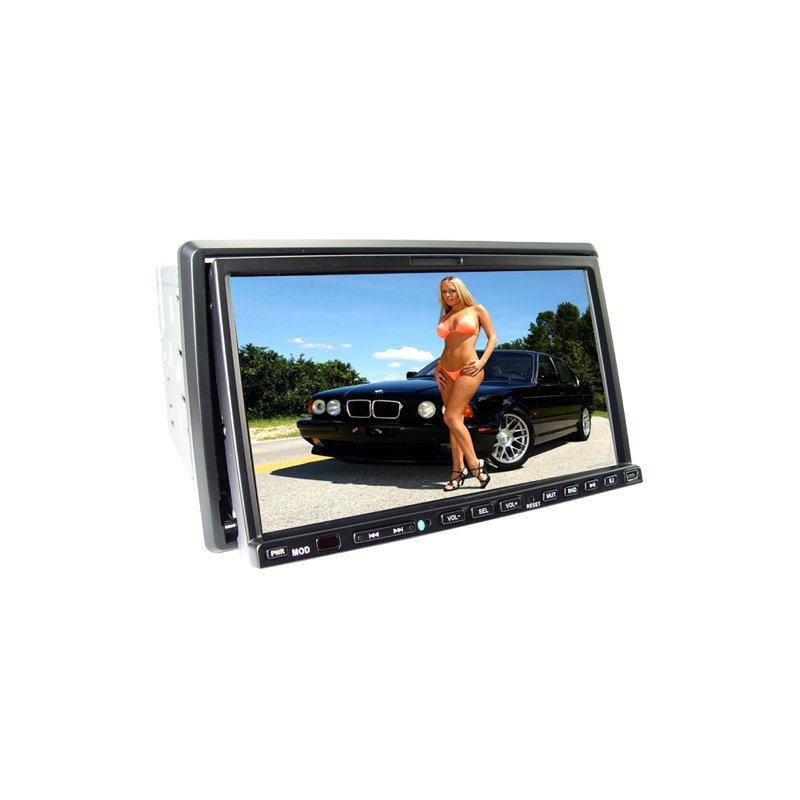

7-inch GPS Car DVD Player with DVB-T (2-DIN)

Average Customer Rating: 5 star rating  based on 2 reviewsprice range: $305.88 1797.132 - $291.73 1713.97- log in for more
Product code: CVHA-C20

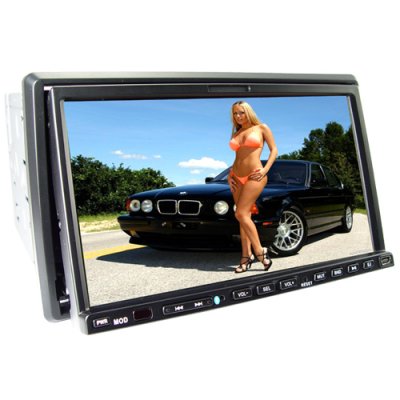

7-inch GPS Car DVD Player with DVB-T (2-DIN)
Left
Right


More Product Recommendations:

Car Reversing Camera w/ IR Nightvision7 % buy
Car Reversing Camera w/ IR Nightvision
$16.95 99.56
(7)
7 Inch TFT Headrest Monitor4 % buy
7 Inch TFT Headrest Monitor
$35.45 208.29
(31)
Anti Slip + Shake Car Sticky Pad15 % buy
Anti Slip + Shake Car Sticky Pad
$1.53 8.9699
(4)
Ultrasonic Distance Measurer - SuperTough12 % buy
Ultrasonic Distance Measurer - SuperTough
$13.33 78.338
(2)

7-inch GPS Car DVD Player with DVB-T (2-DIN). A complete in-car navigation, communication, and entertainment solution which comes with DVD + CD player, Bluetooth pairing, SD card and USB functionality, iPod connectivity, and a DVB-T tuner to experience digital TV in your car. Amazing - going cross country, cross continent, or simply getting stuck in traffic has never been so fun!

Your car has been good to you, so treat it well with this all in one wonder featuring a simple user interface, a rich array of sought after functions, and a rugged 2-DIN form factor. Complete with WIN CE operating system to run most of today's most popular GPS navigation software titles and an extra long 3 meter magnetic GPS antenna, this winning unit will make a 200KM road trip as interesting and fun as a journey from Paris to Moscow especially since you'll be able to watch digital TV wherever it's available with the units DVB-T receiver and magnetic DVB-T antenna for maximum signal reception.

What's more, this car audio unit can run multiple disk types along with a bevy of audio and video multimedia files from both USB keys and SD cards, as well as iPods for added portability options. Whether you're a fan of The Matrix or Lost, movies and tv shows will display beautifully on the motorized sliding 7-inch LCD touchscreen display panel.

Though family time is important, the choice is yours whether you want to turn off your cellphone or keep in touch with the office, but if you need to be reached, simply pair your mobile phone with this car DVD player using hands-free Bluetooth technology and you'll be able to talk into the built-in MIC while listening to your caller through your car's speaker system.

Combining design excellence and the latest technology, this new car multimedia system makes a great upgrade to any personal or company vehicle. With an affordable wholesale price, this is the perfect item for DIY types or re-sellers. Buy one for your next family trip and then buy some more for your Ebay customers. Your online sales won't be the same! This GPS car DVD player with DVB-T is available exclusively to customers of Chinavasion, the leader in direct from China wholesale electronics.

At a Glance...

  • GPS navigation
  • DVB-T functionality
  • Plays many disk formats
  • iPod compatible
  • Bluetooth device pairing
  • Plays many AV file types
  • Can support 2 rear cameras
  • Long magnetic GPS antenna
  • Long magnetic DVB-T antenna


China Manufacturer Specifications

  • Primary Function: 2-DIN Vehicle touchscreen multimedia player with GPS, DVB-T, Bluetooth, and a beautiful 7 inch display.
  • Discs: DVD, CD, VCD
  • Formats Played:
    - Video: 3GP, MPEG, MPG, VOB, AVI
    - Audio: MP3, WMA, AAC
    - Picture: JPEG
  • Operation: Touch screen or remote control
  • Display Information:
    - Screen: 7 Inch TFT LCD
    - Aspect Ratio: 16:9, 4:3
    - Resolution: 480 x 234
    - Angle: 0 to 90 (motorized sliding display panel)
    - Video Systems: PAL, NTSC, AUTO
  • GPS Information:
    - GUI Interface: YES - 3D type
    - Touchscreen Interface: YES
    - Operating Environment: Windows CE 5.0
    - Menu Languages: English, Chinese, German, Spanish, French, Portuguese, Italian (Actual voice and display language depends on GPS software package)
  • Video Information:
    - Video System: 16:9 letter box and 16:9 pan scan
    - User adjustable Brightness, Color, Hue, Contrast
  • Audio Information:
    - Max Audio Output: 45W x 4
    - Signal-To-Noise Ratio (SNR): >85dB
    - User adjustable EQ, Bass, Treble, Fade and Balance
  • Front Panel Controls:
    - Power/Mode
    - Infrared Sensor
    - Track/Search down
    - Track/Search up
    - Bluetooth MIC
    - VOL-
    - Select
    - VOL+
    - Reset Switch
    - Mute
    - Band
    - Play/pause
    - Eject
    - Mini USB Slot
  • Media Inputs:
    - GPS card slot
    - SD/MMC card slot
    - DVD/CD disc slot
    - iPod input (rear)
    - Mini-USB input (front)
  • Bluetooth Functions:
    - Pair with phone - then use touchscreen interface
    - Dial, Answer, Stop Call
    - Volume Control
    - Touchscreen Keypad
  • AM/FM Tuner:
    - AM Frequency Range: 522~1620KHz (worldwide)
    - FM Tuning Range: 87.5~108.0MHz (worldwide)
    - RDS System: YES
  • Cables/Wires:
    - GPS antenna jack
    - DVB-T antenna jack
    - Radio jack
    - iPod cable
    - Rear left speaker OUT
    - Front left speaker OUT
    - Rear right speaker OUT
    - Front right speaker OUT
    - Left audio IN
    - Right audio IN
    - Video IN
    - Video OUT
    - Rear camera input
    - Subwoofer
    - Left front speaker x2
    - Right front speaker x2
    - Left rear speaker x2
    - Right rear speaker x2
  • Certification: CE, FCC, RoHS
  • Dimensions: 160mm x 178mm x 100mm (L x W x H); length = 185mm including front panel
  • OSD Languages: English, Polish, German, Spanish, French, Portuguese, Italian
  • Manufacturer Ref: AKU18K70BMI2

Product Notes

  • This model is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. As the wholesaler, Chinavasion provides the GPS-enabled hardware only, not the software. Chinavasion provides no warranty or customer support regarding GPS software. Chinavasion cannot provide downloads / links / advice regarding GPS software. Any software installation you undertake should be performed or supervised by a professional.
  • USB port is a great way to hook up your portable media player with your car entertainment center
  • Wonder if you can really do it yourself? Check this out - Information On Installing A Car DVD Player

Package Contents

  • Model CVHA-C20 Car Entertainment System
  • Remote control
  • ISO Power/Output wire harness
  • GPS antenna with magnetic base (3M of cable)
  • DVB-T antenna with magnetic base
  • USB extension cable
  • iPod extenion cable
  • Mounting hardware
  • User manual - English



FAQ - Frequently Asked Questions

  • Does this product support the Greek language? The menu system does not support Greek, however if your GPS software comes in Greek then the GPS "voice" and "text" functions will be in Greek. Most popular GPS software come in a variety of languages these days.
  • Is the magnetic base of the DVB-T antenna and GPS antenna strong enough to be placed on a car? Yes, the base of both the GPS and DVB-T antenna are built with powerful magnets, so they can stay on when you go racing with your car.
  • Does DVB-T work well even when the car is moving? Yes, the the quality of the DVB-T picture is dependent on the broadcast signal reception. Driving should not interfere with the digital broadcast signal unless, for example, you enter a tunnel.

  • Login for Wholesale Discount Price

Reviews for: (7-inch GPS Car DVD Player with DVB-T (2-DIN))

Deliverystarrs 5starrs 5starrs 5starrs 5starrs 5
Value for Moneystarrs 5starrs 5starrs 5starrs 5starrs 5
Packagingstarrs 5starrs 5starrs 5starrs 5starrs 5
Ease of Setup/Usestarrs 5starrs 5starrs 5starrs 5starrs 5
Function/Performance      starrs 5starrs 5starrs 5starrs 5starrs 5
    Write a review.
by ECort
on 2009-07-28 12:46:53
5 star ratingGreat item!

Complete 2 Din player, fantastic! Delivery was very fast! I ordered it at Tuesday and i received my item on Thursday, only 2 days processing! Keep it up China Vasion Team!!!


by erik
on 2009-05-28 21:04:50
4 star ratingif you need a carkit, stop looking ! it´s much more

Traffic jam is no longer a problem for me. I simply choose the DVB-T television and I can watch the dutch television ( receives only free to air). When driving quality is poor, but traffic jam means no speed, and drive and watch is not save. The navigation works very nice, I tried the included evaluation software and my first opinion is very good. The SD card slot " eats" all kinds of formats: photo, video. The mini usb connector at the front is suitable for hooking up your USB stick; my 2Gb with music was working well. I was really surprised about the sound quality of the bluetooth carkit, just very good and if you are watching dvd,tv or use the navigator it switches automatically to the carkit to answer the call. The touchscreen works very good and everthing was included ( like cables) for maximum fun. The only disadvantage is to build it into your car. It is not a snap-in construction, you really have to know what you are doing. In doubt leave this to people who can do it for you.

Chinavasion, thank you for bringing this nice entertainmentset on the market !


Date Launched: 23rd May 2009
